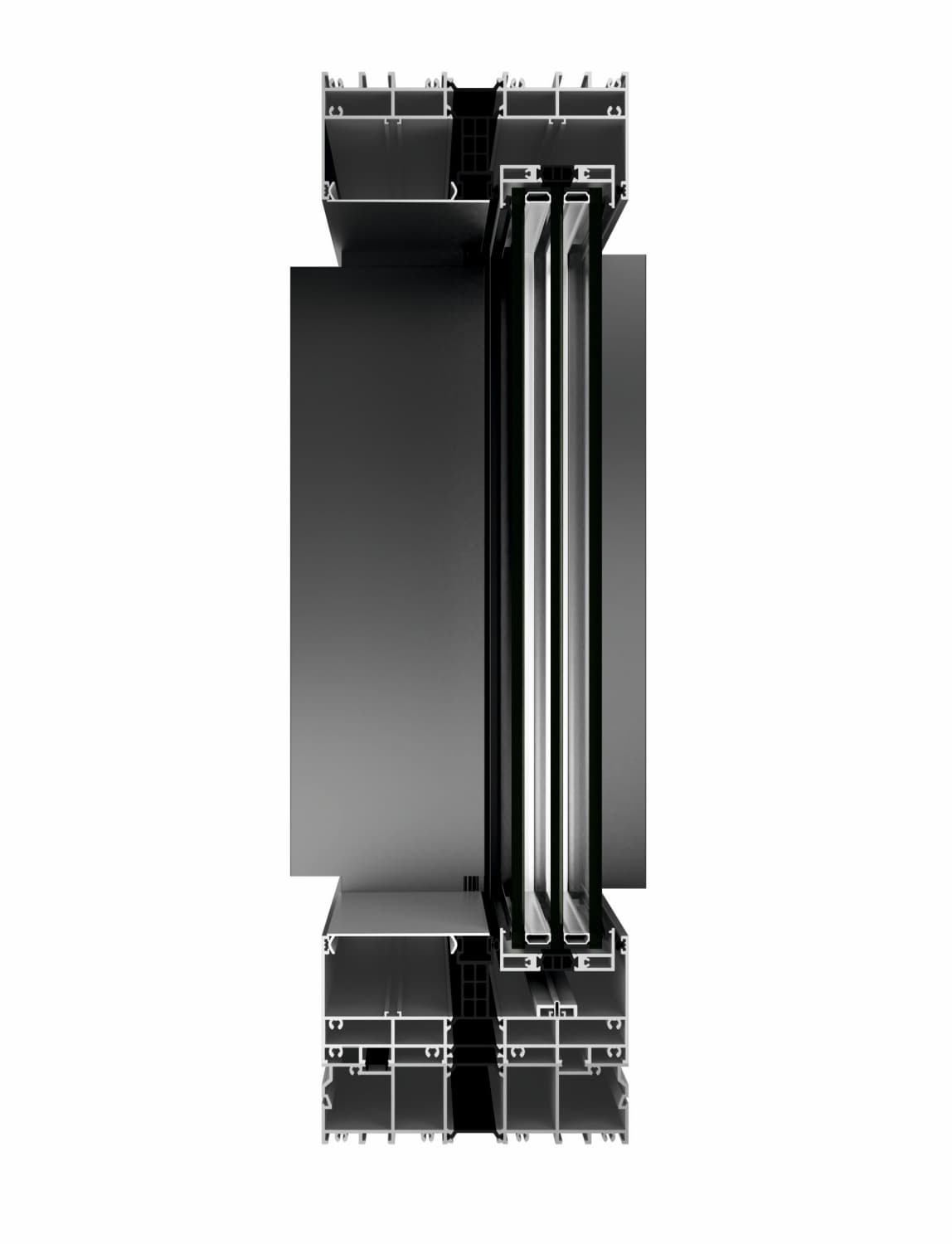

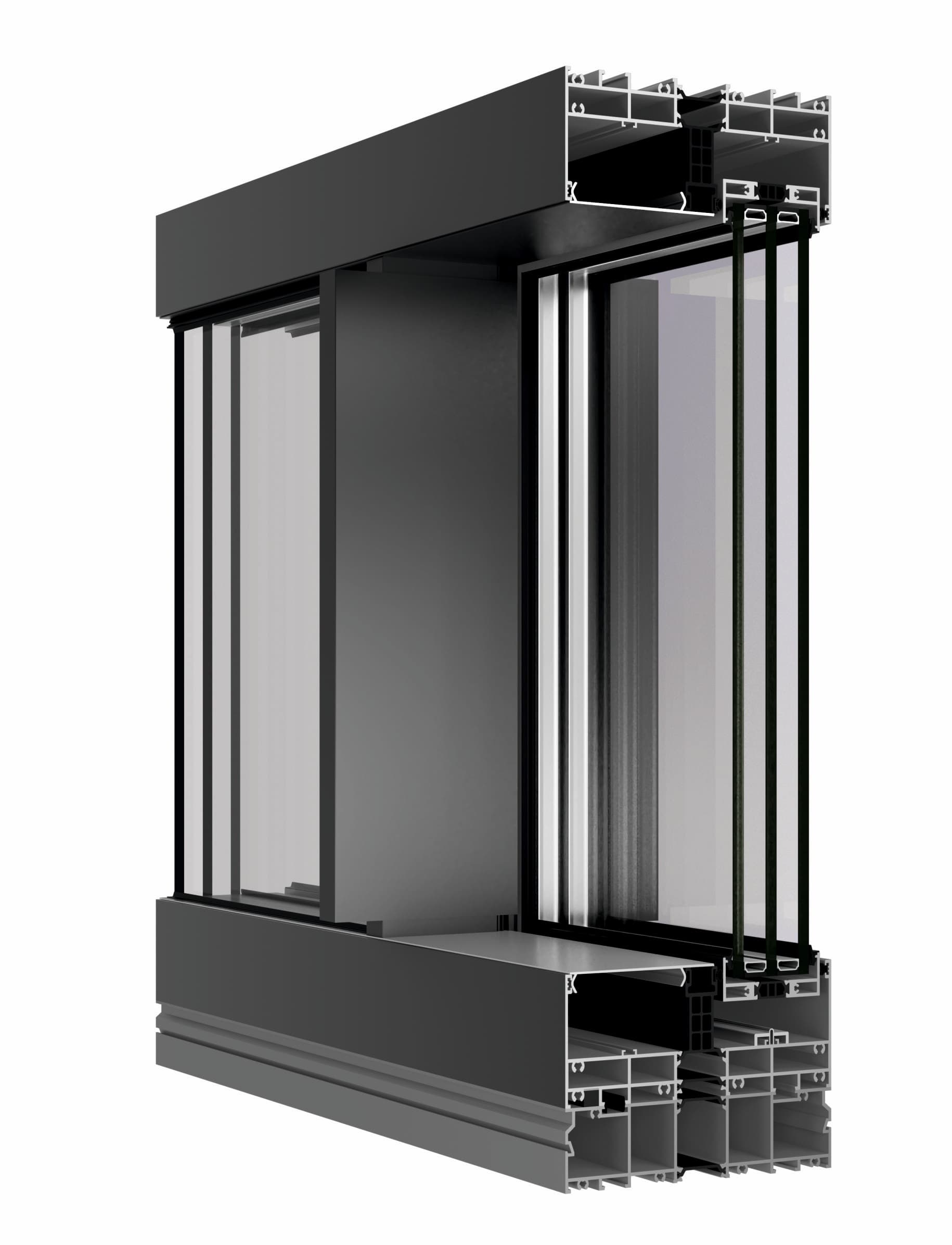

MB SkyLine Type R

MB SkyLine
Type R
SLIDING DOOR SYSTEM WITH HIDDEN FRAME


MB SkyLine Type R is a system of large sliding doors characterized by lightness and aesthetics. It is based on narrow profiles, thanks to which the constructions gain a modern look, while providing a panoramic view of the surrounding area.
The system has completely hidden door leaf profiles, a narrow column, and a thin door frame.
■Thermal isolation
■Tightness
■Glazing
■Resistance
■Waterproof
Optional equipment
Uw ≥ 0,80 W/m²K
■Tightness
Class 4, EN 12207
■Glazing
min. thickness 52 mm
max. thickness 60 mm
■Resistance
Class C3 (1200 Pa)/B3 (1200 Pa), EN 12210
■Waterproof
Class 8A (450 Pa), EN 12208
Optional equipment

Product features
- the door frame is built into the walls, floor, and ceiling
- the door leaf profiles are completely hidden in the lower and upper door frame
- a column at the junction of the door leaves with a width of 25 mm
- symmetrical narrow column in a 3-part construction with a middle part that can be opened (type G), also for manual control
- comfortable, thin door frame with a depth of 23 mm
- max. weight of manually opened door leaf: 500 kg, with hidden actuator: 1200 kg
- constructional depth of door sections: 71 mm for door leaf and 190 mm for door frame
- door leaf made of modern insulating material with high thermal parameters
- sliding seals used in the door frame: modern, aesthetic, and silent during operation
- modern drainage system with a system gutter
- structural base with high thermal insulation
- the system has a so-called "zero column", which allows for the use of external sun protection such as SkyFlow blinds and SkyRoll screens
