MB 59 Slide

MB 59

SLIDE
SLIDING DOOR SYSTEM
thermo
Thermo

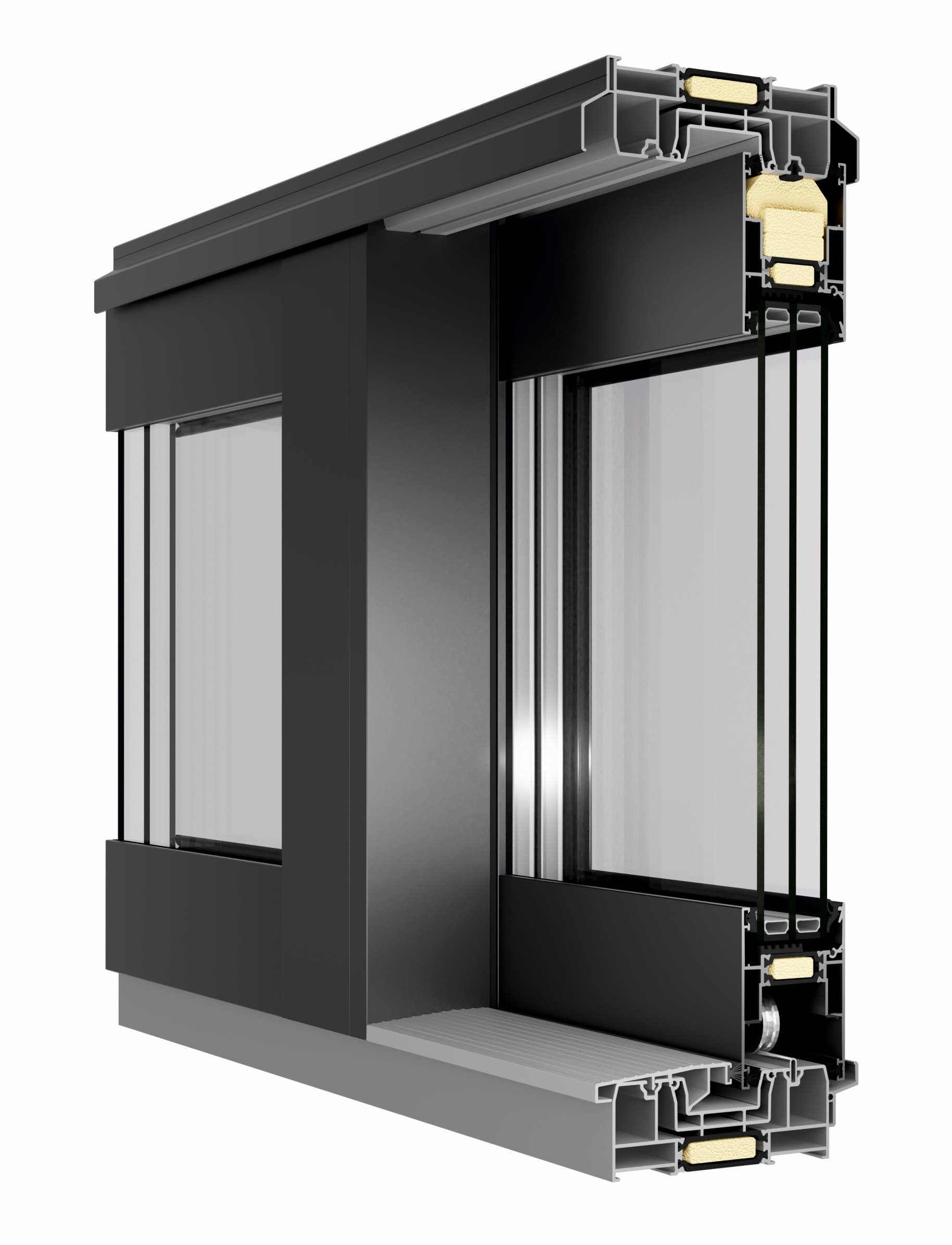

MB 59 Slide is a system designed for the production of sliding balcony doors with thermal insulation (suitable for installation in masonry walls, aluminum facades, winter gardens or shop window constructions).



Sliding doors, especially in large dimensions, visually „enlarge” the living space by connecting it with an external terrace or garden. The range of available profiles includes two- and three-rail door frames. The wide range of glazing allows for the installation of single or double-chamber sets, including acoustic or anti-burglary solutions.



MB 59 Slide can be used in various types of buildings, both individual and in hotels or apartment buildings.

Thermal isolation
Uf ≥ 1,9 W/m²K

Tightness
Class 3, EN 12207:2001

Glazing
min. thickness 10,5 mm max. thickness 42 mm

Resistance
Class C3, EN 12210:2001

Waterproof
Class 6A, EN 12208:2001



Optional equipment

Product features
  • large allowable dimensions of door panels: height up to 2.6 m, width up to 1.8 m; maximum weight of the panel up to 160 kg

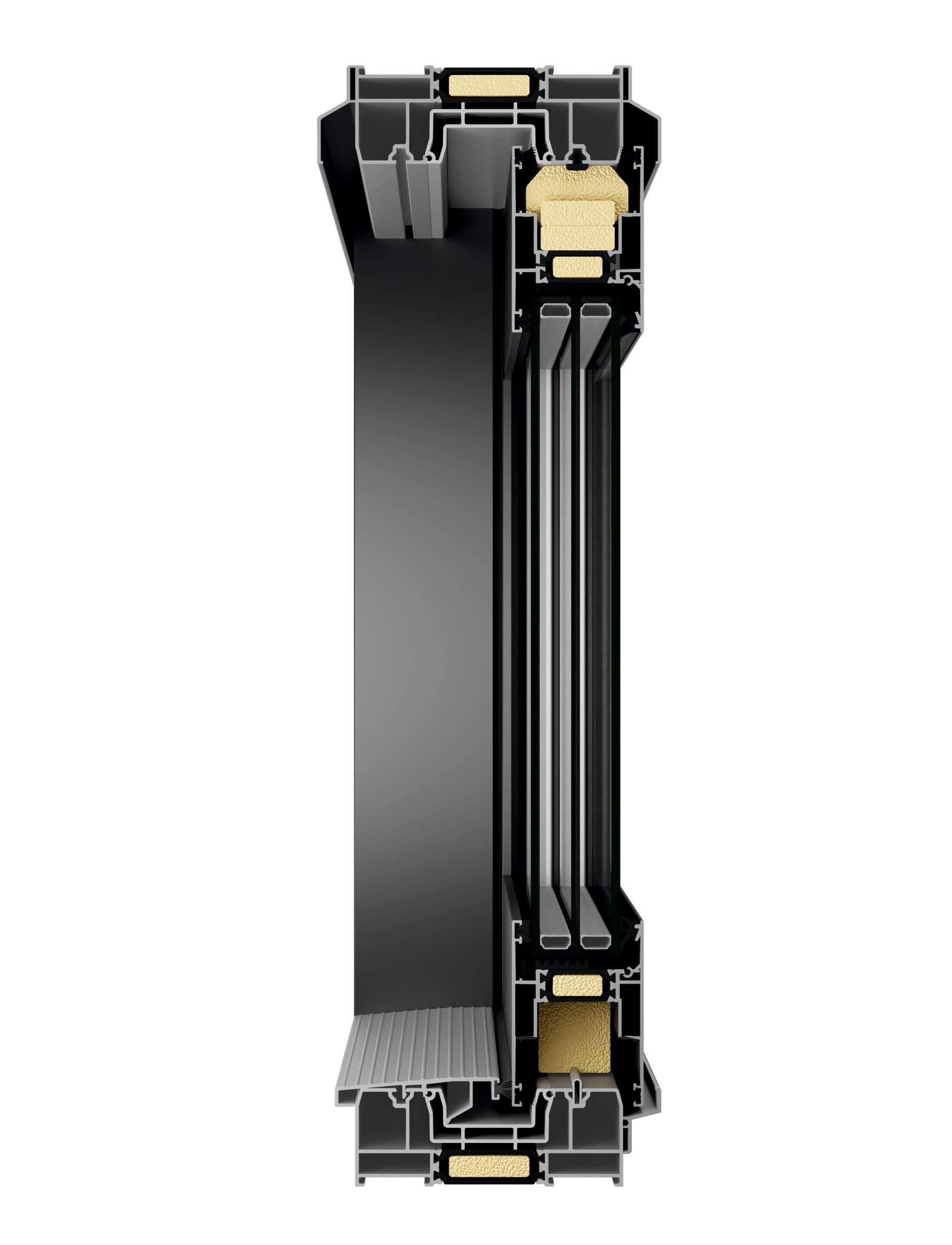

  • slim and durable profiles with a three-chamber construction, where the central part is an insulating chamber with wide thermal breaks
  • two- or three-rail door frames, allowing for doors with a wide passage
  • possibility of installing doors in individual constructions as well as in larger structures such as column-rail facades or winter gardens
