MB 59 Galandage
MB 59
Galandage
SLIDING DOOR SYSTEM

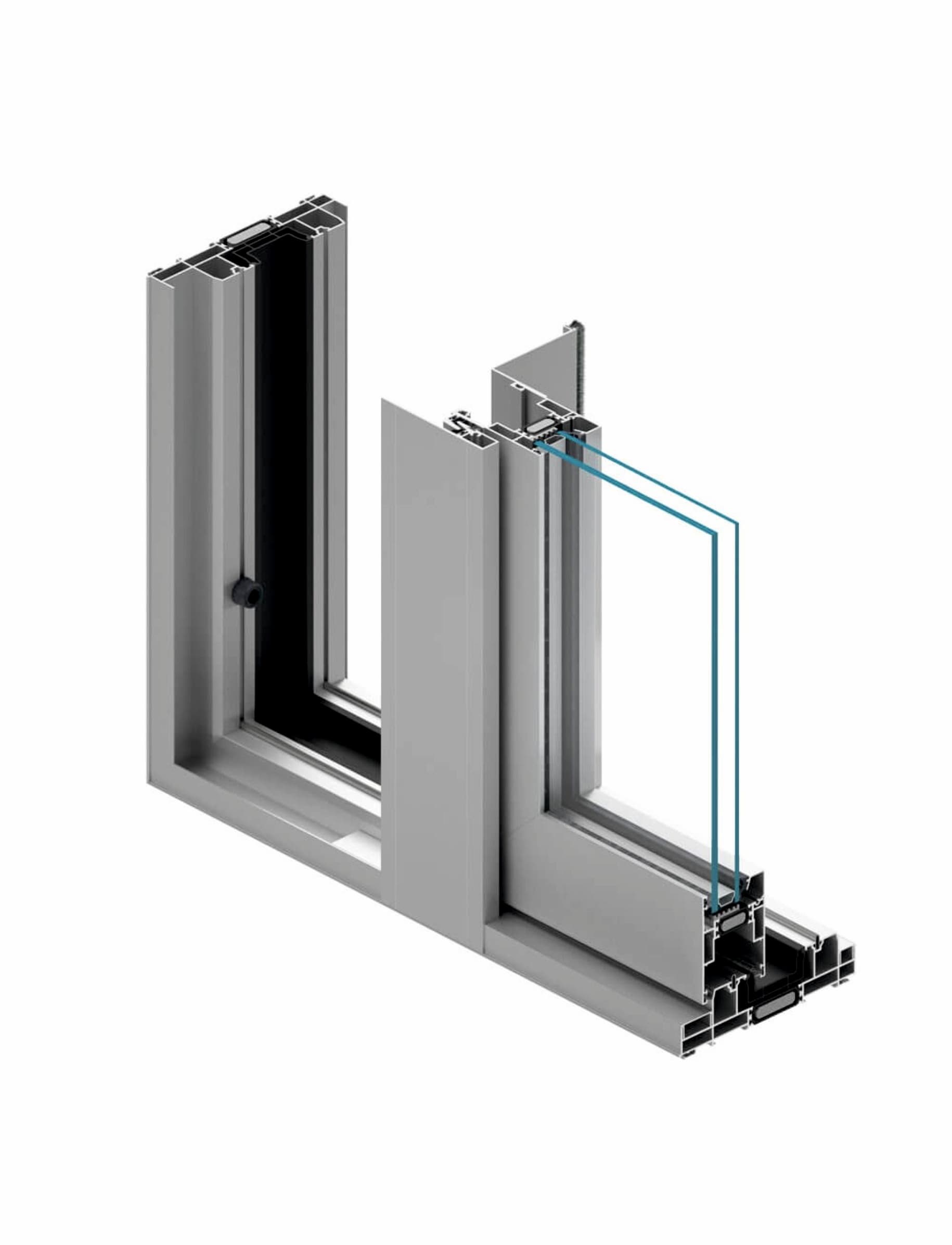

The MB-59 Slide Galandage system is based on solutions from the MB-59 Slide system and is designed for making sliding doors with thermal insulation hidden in masonry walls so that the door wing is completely concealed in them after opening. Doors installed in this way eliminate the boundary between the living area of the house and the external terrace or garden. The MB-59 Slide Galandage system profiles have two different thermal insulation construction options: ST and HI. The range of available profiles includes two- and three-track frames. A wide range of glazing allows for the installation of single- or double-chamber sets, including acoustic or anti-burglary ones.
■Thermal isolation
■Tightness
■Glazing
■Resistance
■Waterproof
Optional equipment
Uf ≥ 1,9 W/m²K
■Tightness
Class 3, EN 12207:2001
■Glazing
min. thickness 10 mm
max. thickness 42 mm
■Resistance
Class C2/B2, EN 12210:2016
■Waterproof
Class 5A, EN 12208:2001
Optional equipment
Product features
- Large allowable dimensions of door wings: height up to 2.6 m, width up to 1.8 m; maximum wing weight up to 160 kg
- Slim and durable three-chamber profiles
- Two- or three-track frames, allowing for the production of doors with a wide span
