aluron AS 75
AS 75
WINDOW AND DOOR SYSTEM
Thermo

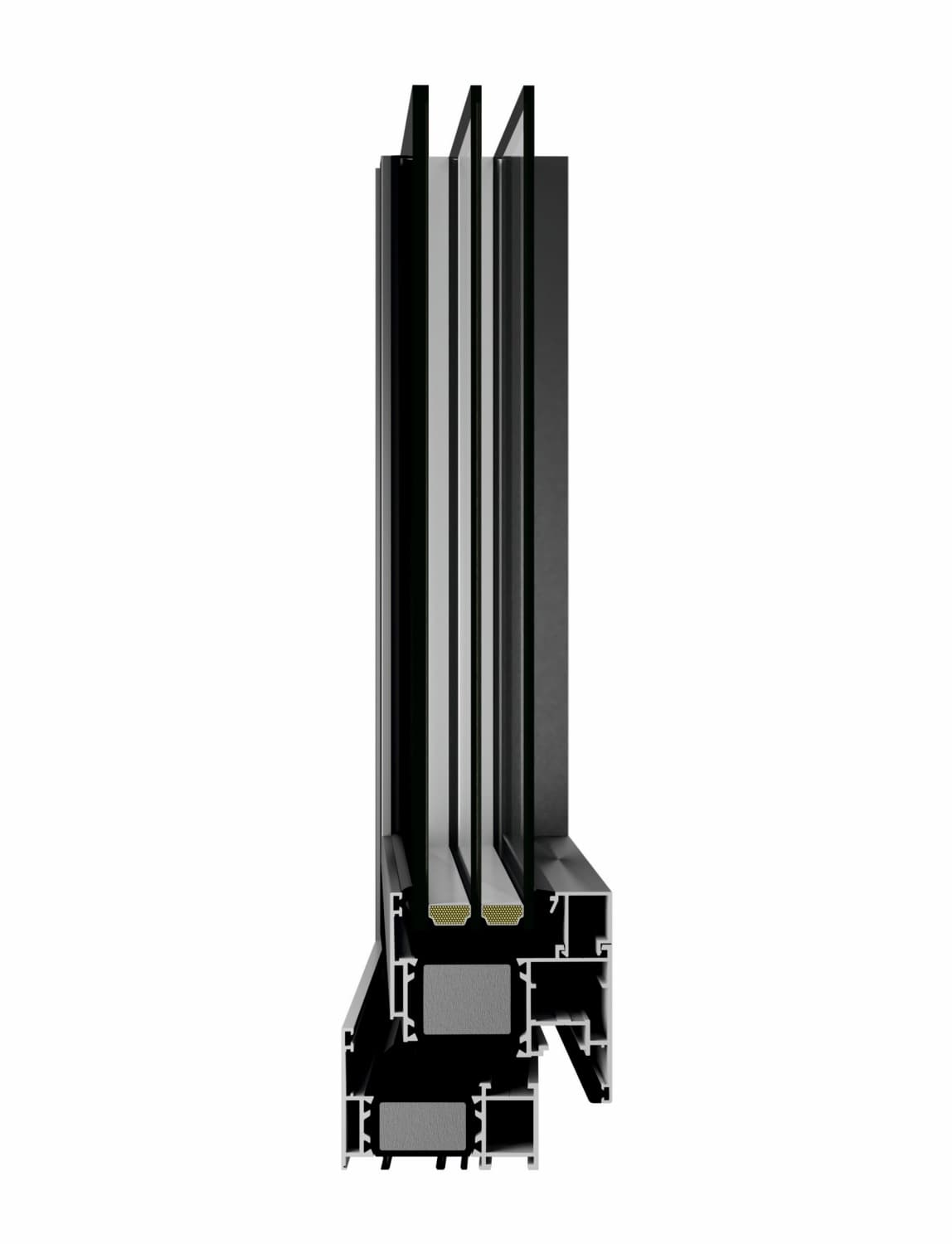

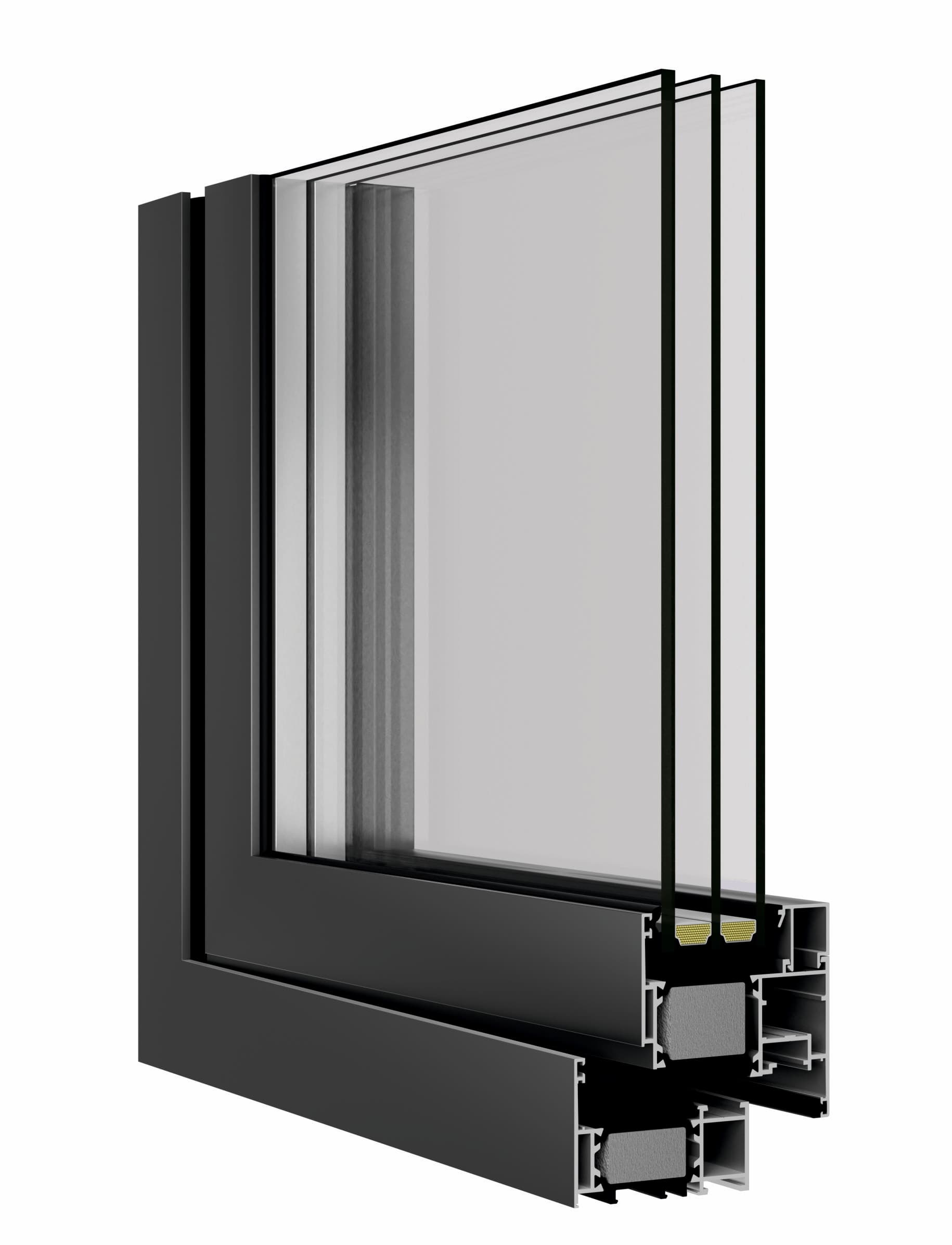

The three-chamber AS 75 system is designed for the production of thermally insulated window and door structures using innovative ANTI-BI-METAL technology, which prevents deformation of door panels during exposure to sunlight and very low temperatures. The system meets the requirements of all current and future thermal insulation standards.
■Thermal isolation
■Tightness
■Security
■Glazing
■Resistance
■Waterproof
Optional equipment
Uw ≥ 0,79 W/m²K
■Tightness
Class 4
■Security
RC2, RC3
■Glazing
min. thickness 16 mm
max. thickness 66 mm
■Resistance
Class C5
■Waterproof
Class E1950 Pa
Optional equipment
Product features
- Window frame depth of 75 mm
- Glazing range up to 66 mm
- Window sash depth of 84 mm
- Thermal insulation Uw of the window from 0.67 W/m²K
- Air permeability class 4
- Wind load resistance of C3
