aluron AS 110
AS 110
PASSIVE ALUMINIUM WINDOWS
Acoustic protection
Rigid structure
Thermo

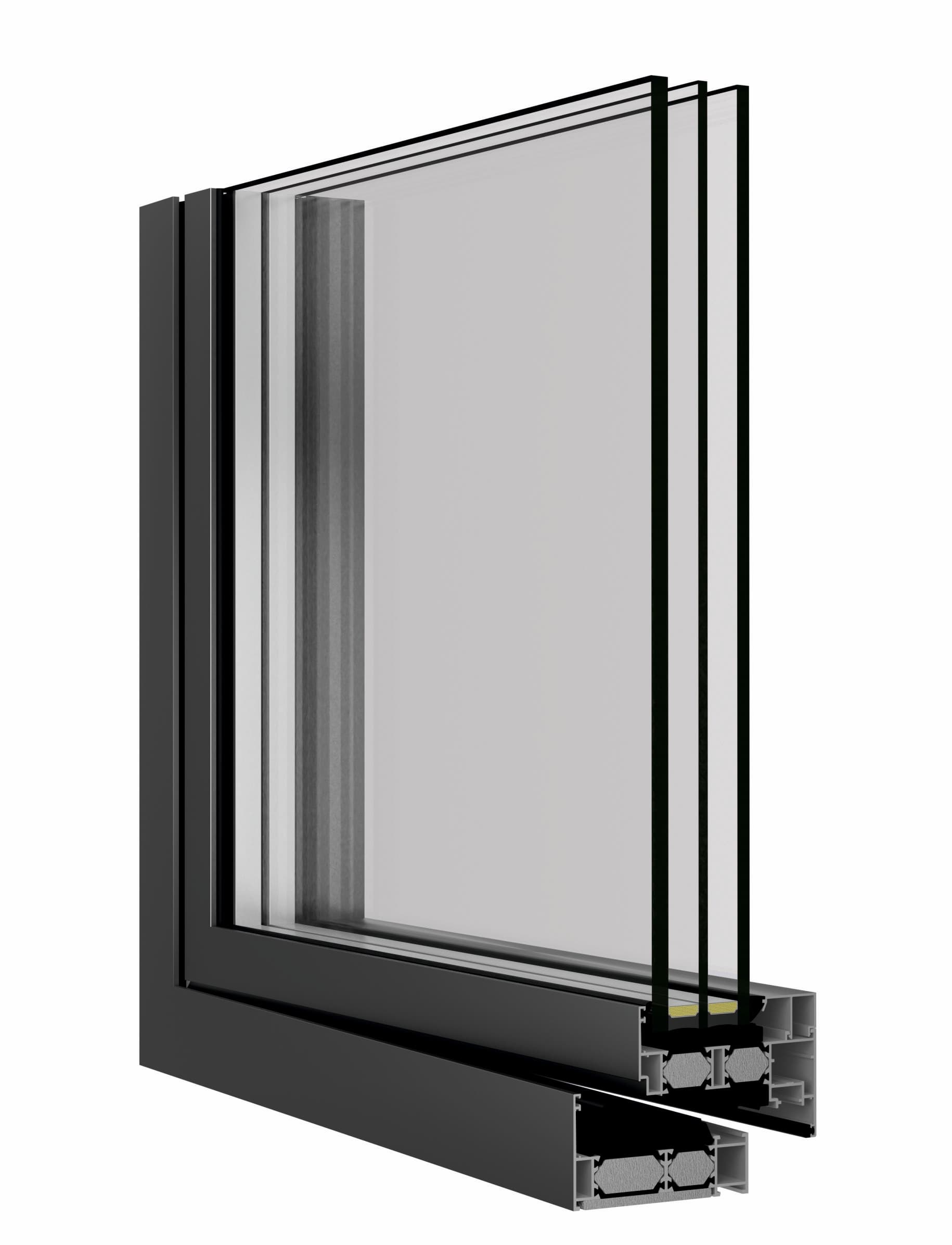

The AS 110 system is designed for the production of windows, balcony doors and storefronts with one of the highest levels of thermal insulation on the market. It is a modern design intended for glazing with heavy 3-chamber packages, allowing for excellent static parameters of the sash. The system has very high acoustic insulation.
■Thermal isolation
■Tightness
■Glazing
■Resistance
■Waterproof
Optional equipment
Uw ≥ 0,419 W/m²K
■Tightness
Class 4
■Glazing
min. thickness 30 mm
max. thickness 80 mm
■Resistance
Class C5/B5
■Waterproof
Class E 1950 Pa
Optional equipment
Product features

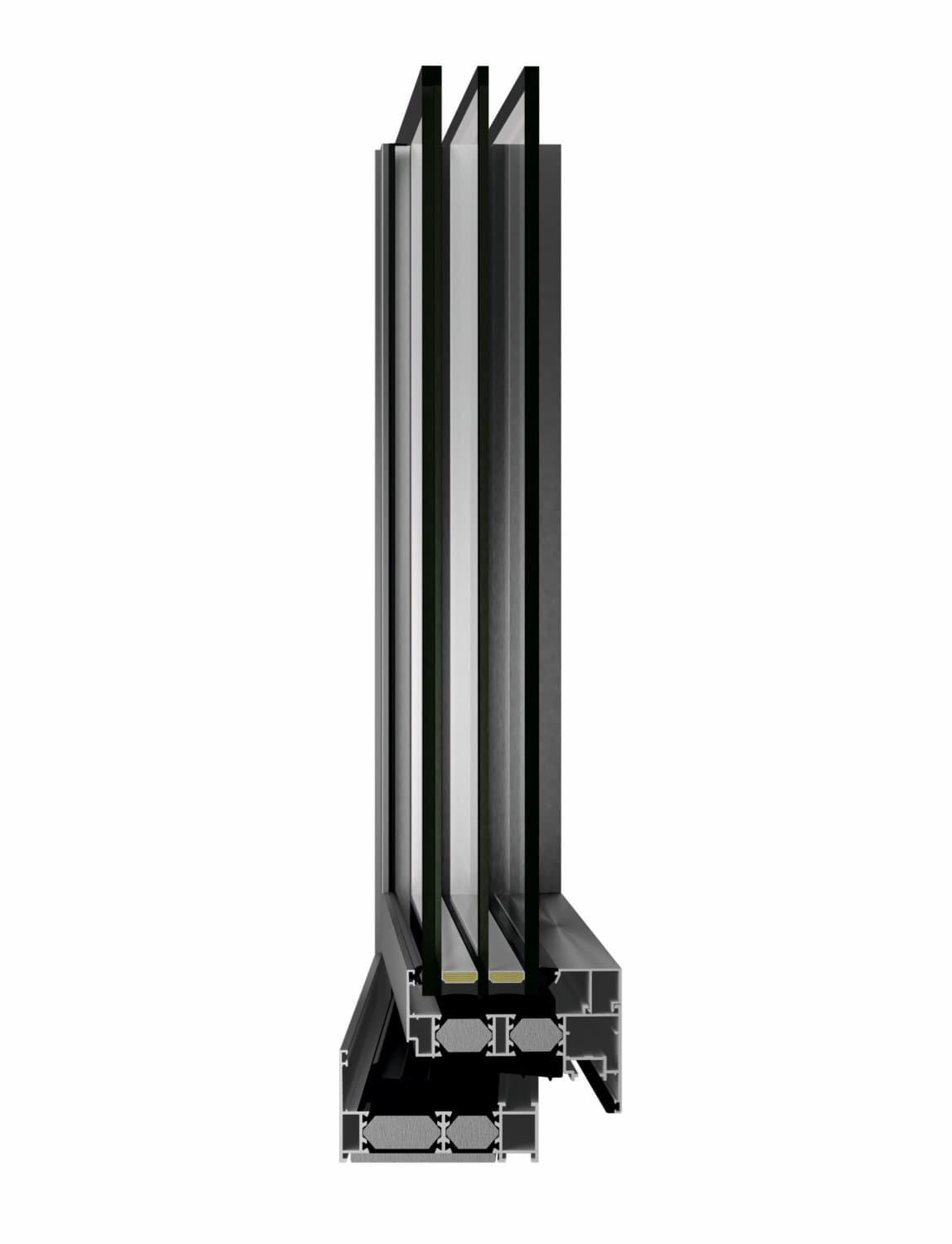

- Five-chamber profile construction, guaranteeing strength and aesthetics
- High thermal insulation
- Frame depth of 110 mm, sash depth of 119 mm
