veka Softline 82 MD
SOFTLINE
82MD
DESIGN · AESTHETICS · FUNCTIONALITY

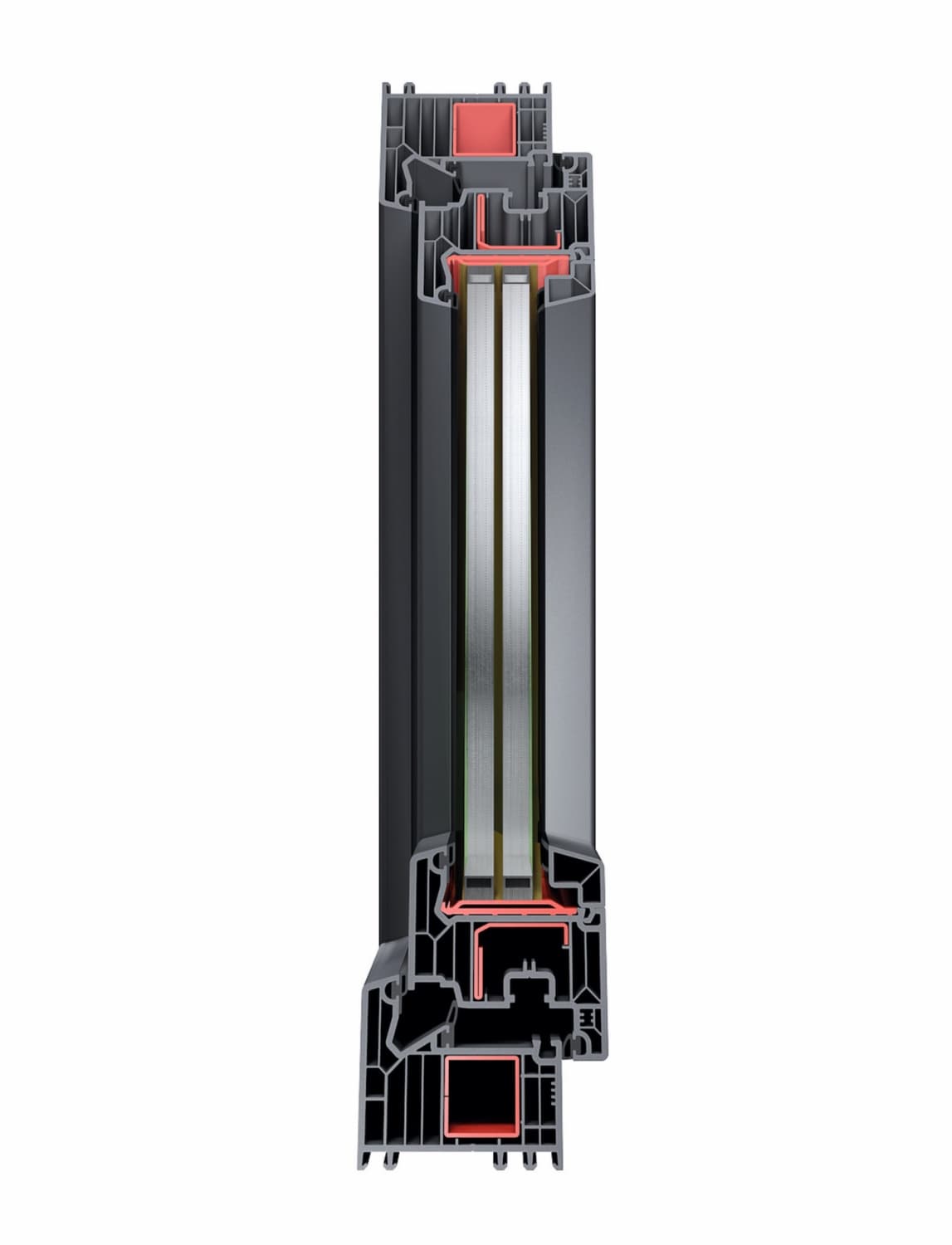

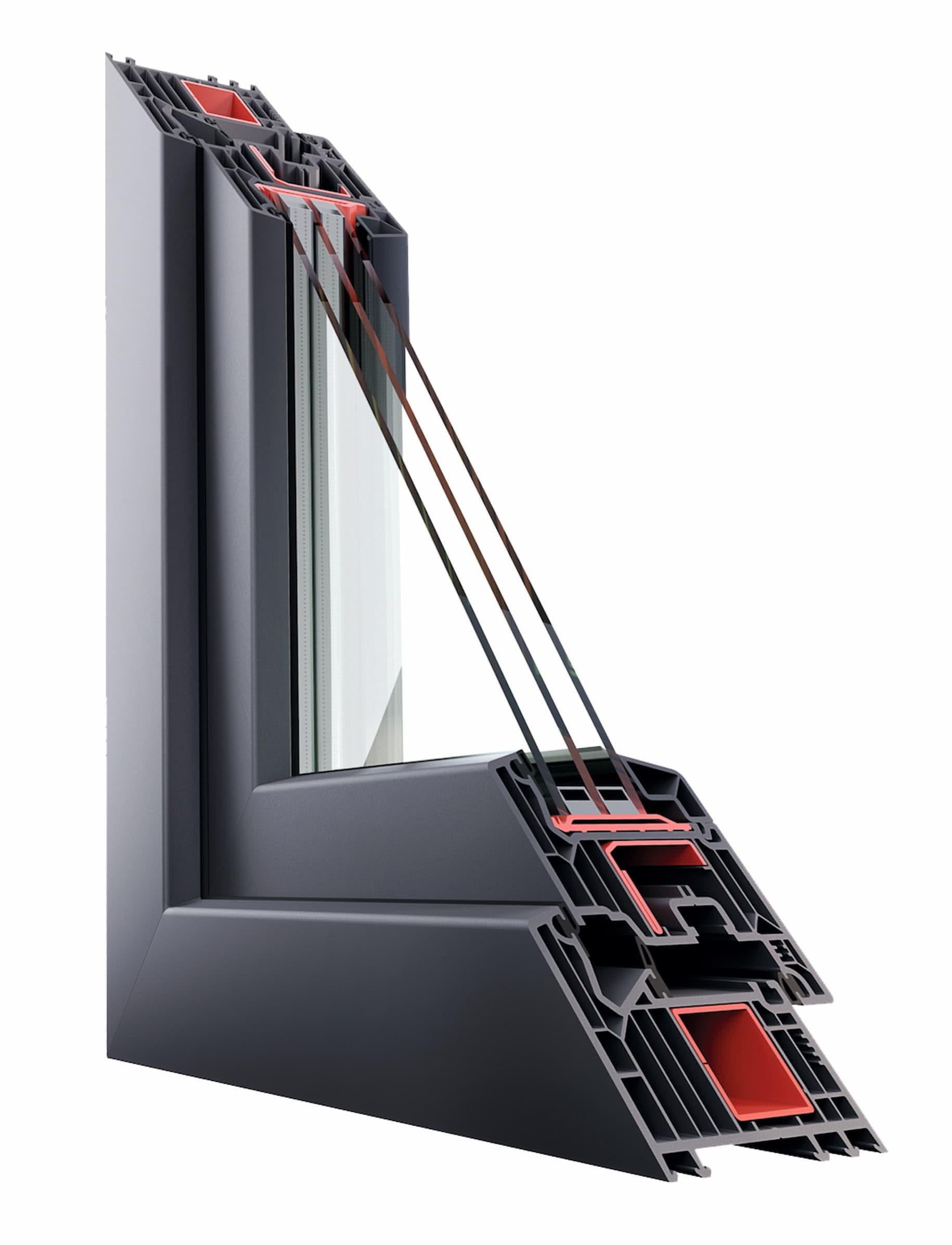

Softline 82 MD is the latest generation system of Veka profiles. It has the highest German quality – class ,,A„- meaning maximum service life, safety and energy efficiency. They have a remarkable resistance and insulation due to the 7-chamber profile structure, 82 mm installation depth, and also metal reinforcements.
The elegant form with a slightly rounded shape, is responsible for the highest quality design, making Softline 82 an unique product. This system can be used in different places – in new constructions and during repairs.
■Thermal isolation
■Tightness
■Acoustics
■Security
■Glazing
Optional equipment
Uf = 1,0 W/m²k
Uw ≥ 0,6 W/m²K
Ug = 0,5 W/m²K
■Tightness
Class 7A
■Acoustics
Rw do 44 dB
■Security
Do klasy RC2
■Glazing
min. thicknes 24 mm
max. thicknes 52 mm
Optional equipment
Possibility of using RC2 fittings
Invisible hinges
Warm frame
Aluminium overlay
Product features
- prestigious German 7-chamber profile - sophisticated shape, stability, excellent performance
- installation depth 82 mm - sensational strength, thermal insulation and high heat savings
- innovative profile design - the optimal temperature distribution and the absence of condensation inside the profile
- excellent heat transfer coefficient - Uw less than 0,6 W/m2K with the innovative
- 7-chamber geometry and tripple glazing - thermal insulation, reducing heating costs and energy efficiency
- unique design using traditional steel reinforcements – sensational coefficient Uf=1,0 W/m2K
- glazing thicknes from 24 to 52 mm - perfect thermal insulation
- special steel used already for a long time in the 70 mm systems; stability and safety
- innovative design of the sash - pressed to the central gasket, ensuring a perfect seal of the whole window
- wall thickness in highest quality group: class A - greater safety and noise reduction
- special triple gasket system with a central seal - perfect noise, cold and moisture isolation
- many possibilities of application: windows, entrance and sliding doors
- smooth profile surfaces - easy to maintain without the need for conservation
- Profile versatility - compatible with all branded ferrules on the market
- elegant design - aesthetics and functionality
Kolory:
