veka Softline 76 MD
SOFTLINE
76MD

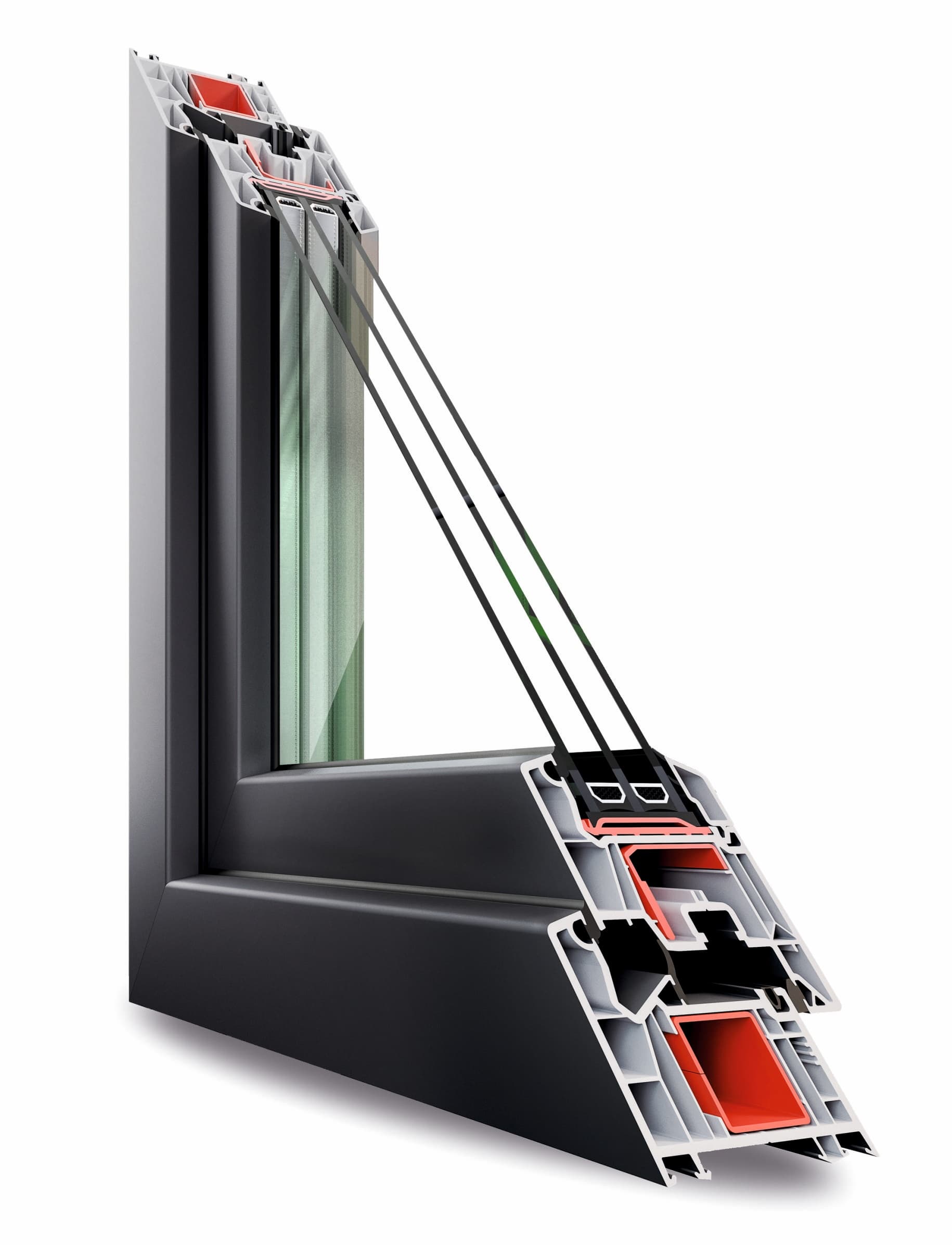

Softline 76MD is the highest quality class A profile, which is an alternative solution between 70 mm and 82 mm systems.
What makes it stand out from the competition?
First of all, excellent thermal parameters – the profiles have a heat transfer coefficient U of 1.1 W/m²K, a central gasket placed in the frame and a multi-chamber structure, as well as mechanical – thanks to steel reinforcements in the frame, made of a closed profile 30 x 30 mm. The Softline 76 MD profile will provide us with not only excellent thermal insulation, but also increased resistance to burglary.
■Thermal isolation
■Tightness
■Acoustics
■Glazing
Optional equipment
Uf = 1,1 W/m²K
Uw ≥ 0,87 W/m²K
Ug =0,5 W/m²K
■Tightness
Class 7A
■Acoustics
To 51 dB
■Glazing
min. thicknes 18mm
max. thicknes 48mm
Optional equipment
Possibility of using RC2 fittings
Invisible hinges
Warm frame
WinClick
Product features

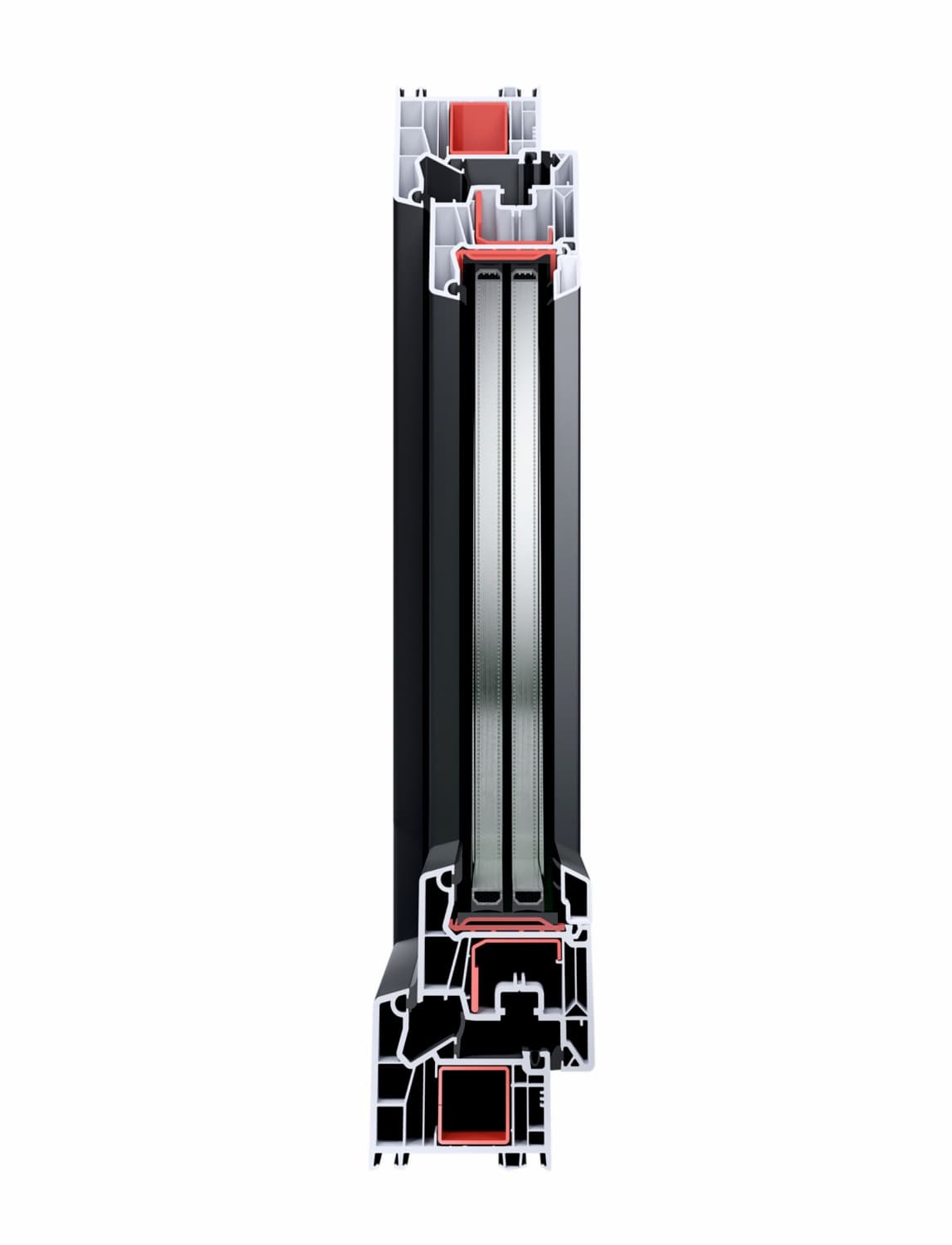

- renowned 5-chamber profile (5 chambers in the frame profile and 5 chambers in the sash profile)
- installation depth 76 mm
- elegant design - beautiful design, aesthetics and functionality
- double and triple glazing can be used. The Softline 76 MD profiles allow the installation of glazing units with a thickness from 18 to 48 mm. Thanks to embedding the glazing unit in the profile to a depth of 25 mm, the phenomenon of glass retting is limited. The thermal insulation and burglary resistance of windows also increases
- it has a system of external gaskets and an additional central gasket, which increases protection against noise and cold penetration
Kolory:
