gealan Termoline
TERMOLINE
83MD
CLASSIC ELEGANT LINE
Excellent choice for customers requiring extreme thermal insulation of windows. Irreplaceable windows for passive and energy-saving houses. Termoline windows not only provide the highest thermal insulation, but also elegant design and the ability to use large glazing.
■Thermal isolation
■Tightness
■Acoustics
Optional equipment
Uf = 0,92 W/m²K
Uw ≥ 0,9 W/m²K
Ug = 0,5 W/m²K
■Tightness
To class 7A
■Acoustics
Rw: to 50 db
Optional equipment
Possibility of using RC2 fittings
Invisible hinges
Warm frame
Aluminium overlay
Product features
excellent thermal insulation Uf = 0,92 W/m²K
profile installation depth 90 mm - better energy-saving qualities, durability and safety

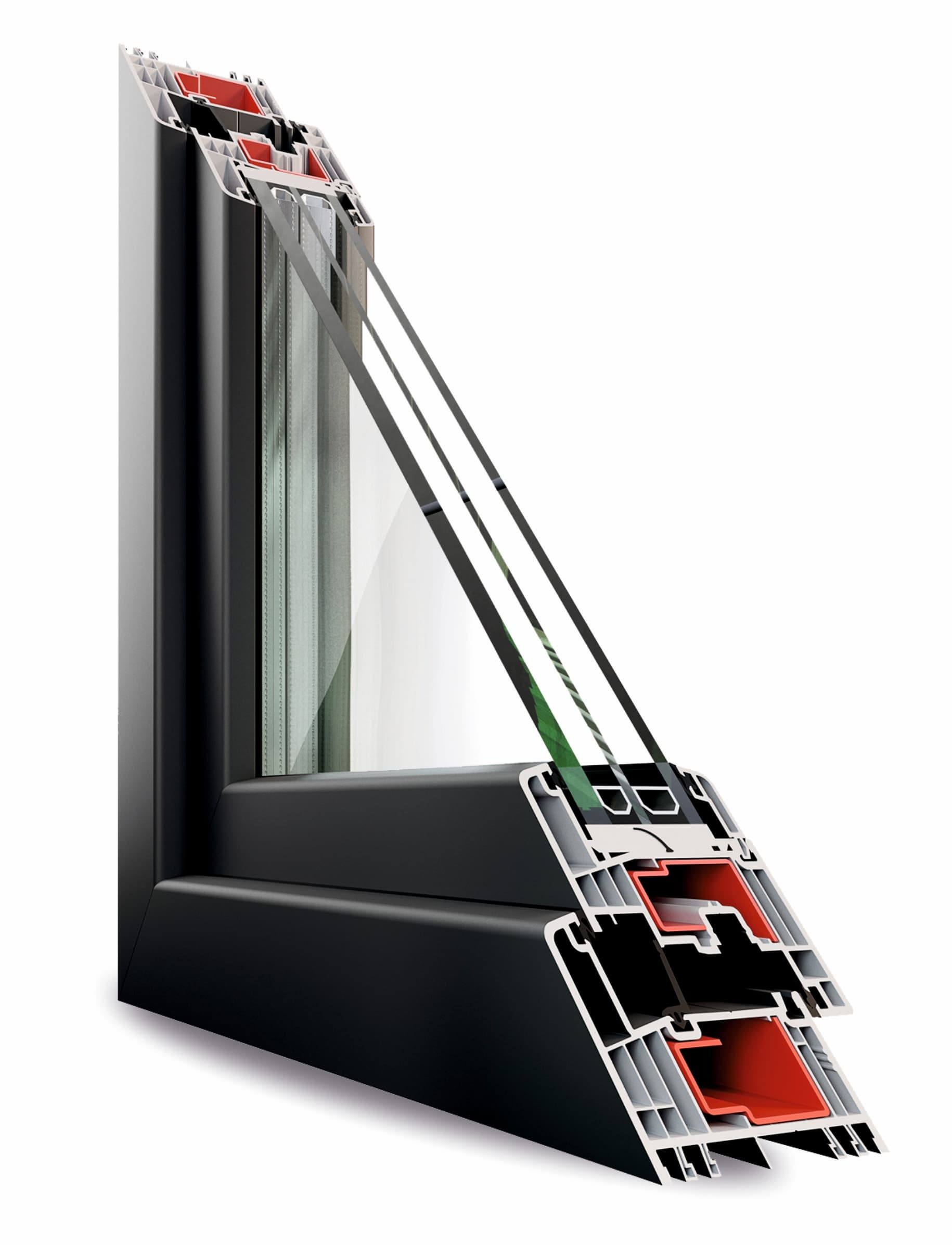

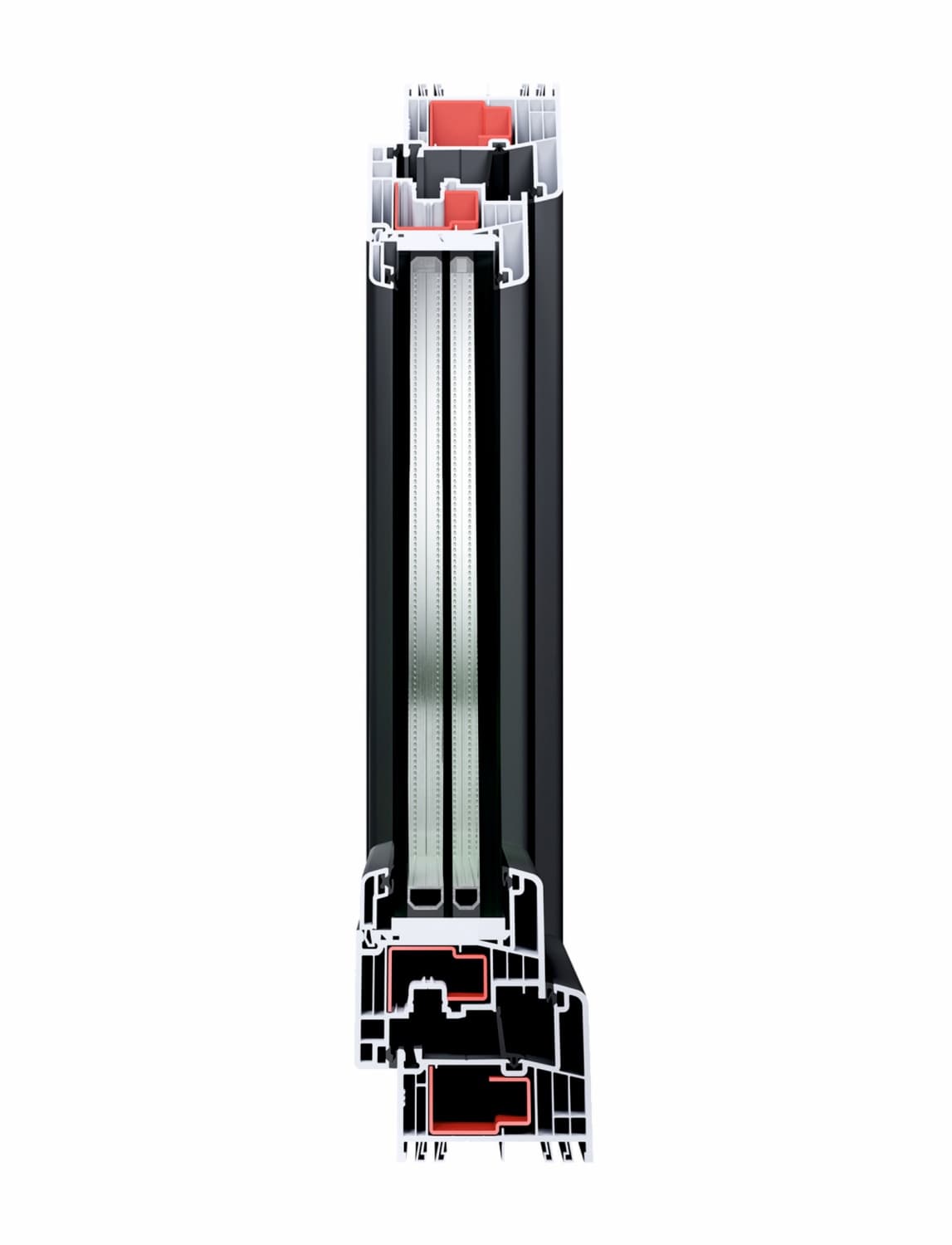

advanced design – 6 chamber frame and sash construction
special triple gasket system with a central seal - perfect acoustic and thermal insulation and excellent tightness
extensive system of additional profiles (frame extensions, coupling and corner profiles)
an overlap height of 25 mm - a high glass inset ensures improved thermal insulation
narrow frame and sash make the production of large glazed windows possible, as well as provide a modern and designer look
