gealan Linear
LINEAR
MINIMALISM • VISUAL PERFECTION
The system uses a design concept based on simple, clear contours that set the tone for contemporary architecture. A wide selection of matching glazing beads is a continuation of the consistent style of the external appearance from the room side. The low height of the frame and sash assembly increases the amount of light entering the interior.
GEALAN-LINEAR® is characterized by visual perfection, simple, economical contours and uncompromising modernity.
Slim, elegant profiles make an amazing impression.
■Thermal isolation
■Tightness
■Acoustics
■Glazing
Optional equipment
Uf = 1,0 W/m²K
Uw ≥ 0,73 W/m²K
Ug = 0,5 W/m²K
■Tightness
To classe 7A
■Acoustics
Rw: to 50 db
■Glazing
max. thickness 48 mm
Optional equipment
Possibility of using RC2 fittings
Invisible hinges
Warm frame
WinClick

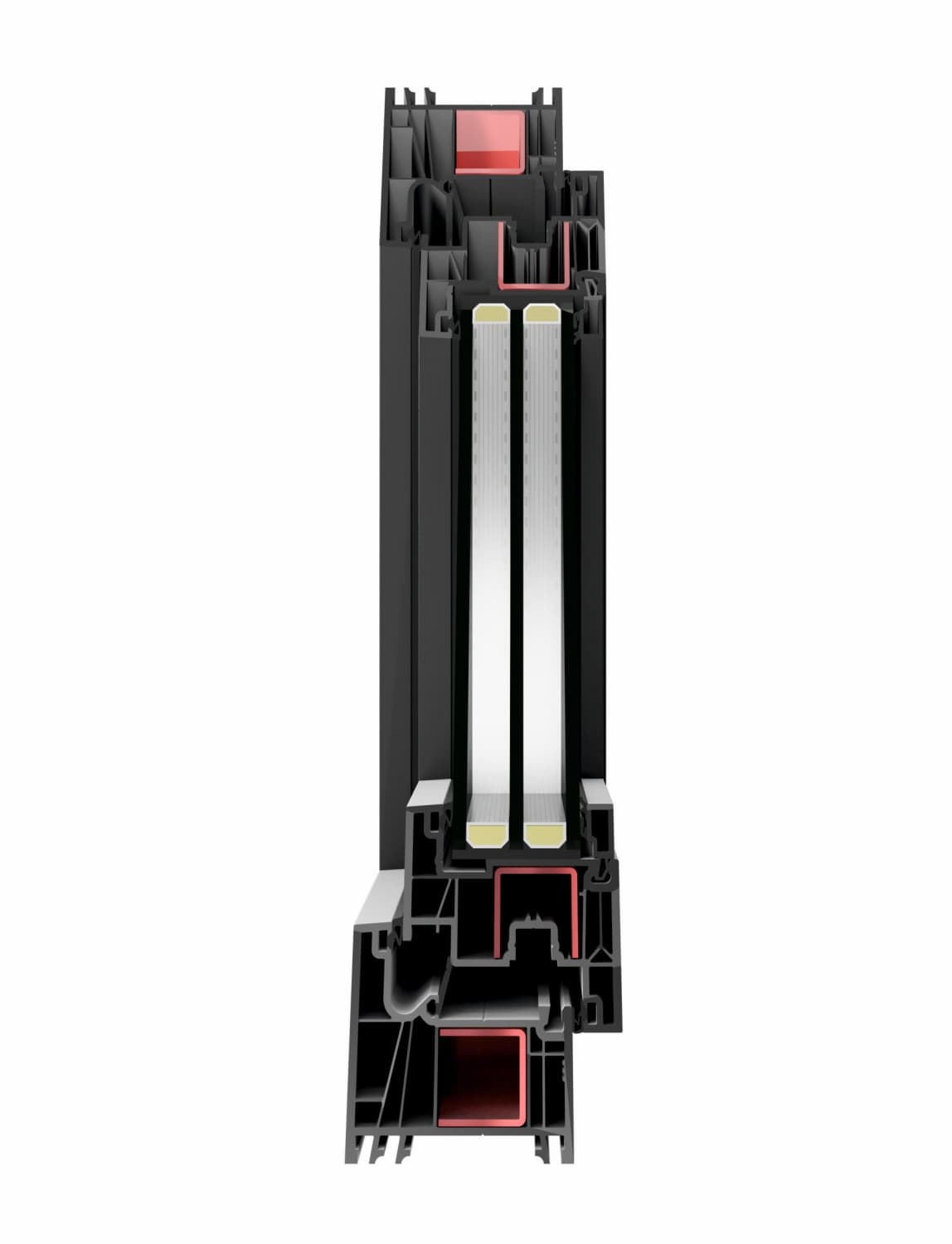

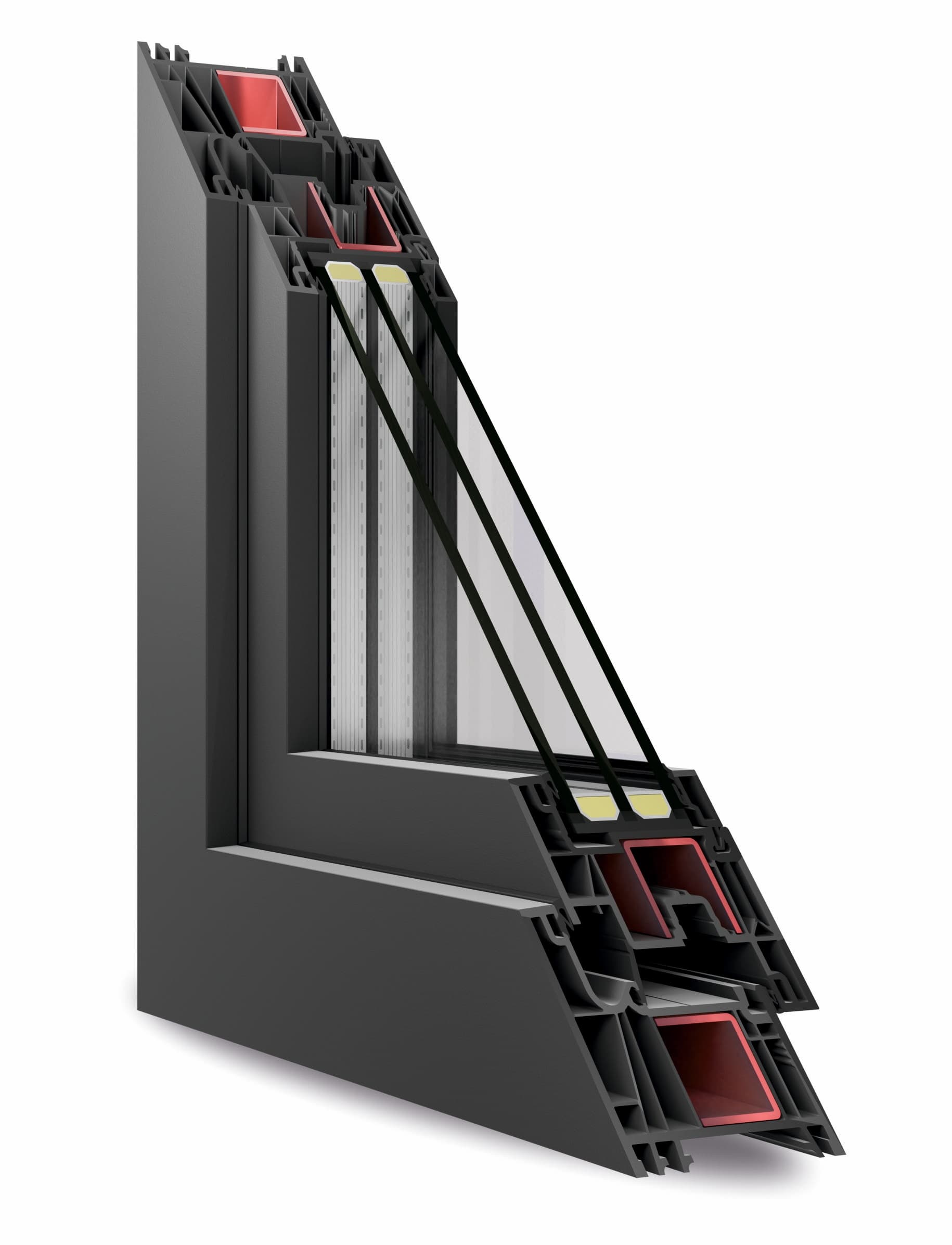

Product features
6 chambers in the frame
Simple contours of glazing beads in 90° optics
Innovative middle gasket
The rebate angle of 4° ensures a modern design in line with the latest trends - simple contours
The low assembly height of 110 mm allows for a large share of glass - large-area glazing is possible
Excellent thermal insulation Uf heat transfer coefficient up to 1.0 W/(m²K)
Maximum glazing depth up to 48 mm (with Ug = 0.5W/(m²K) in the STV® variant up to 50 mm
Optimum thermal insulation thanks to 3 levels of sealing
Excellent statics
