AF 50
AF 50
FACADE SYSTEM

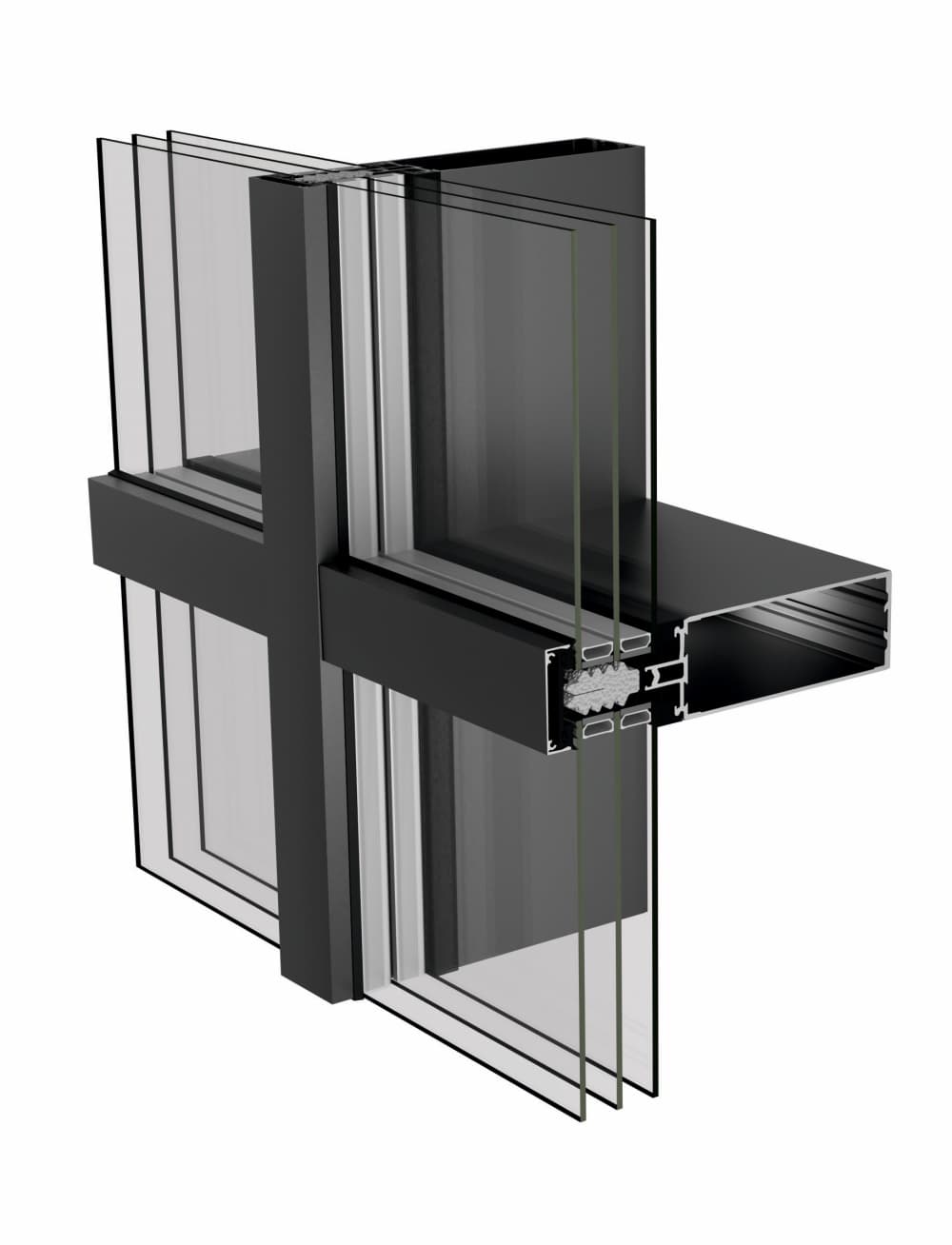

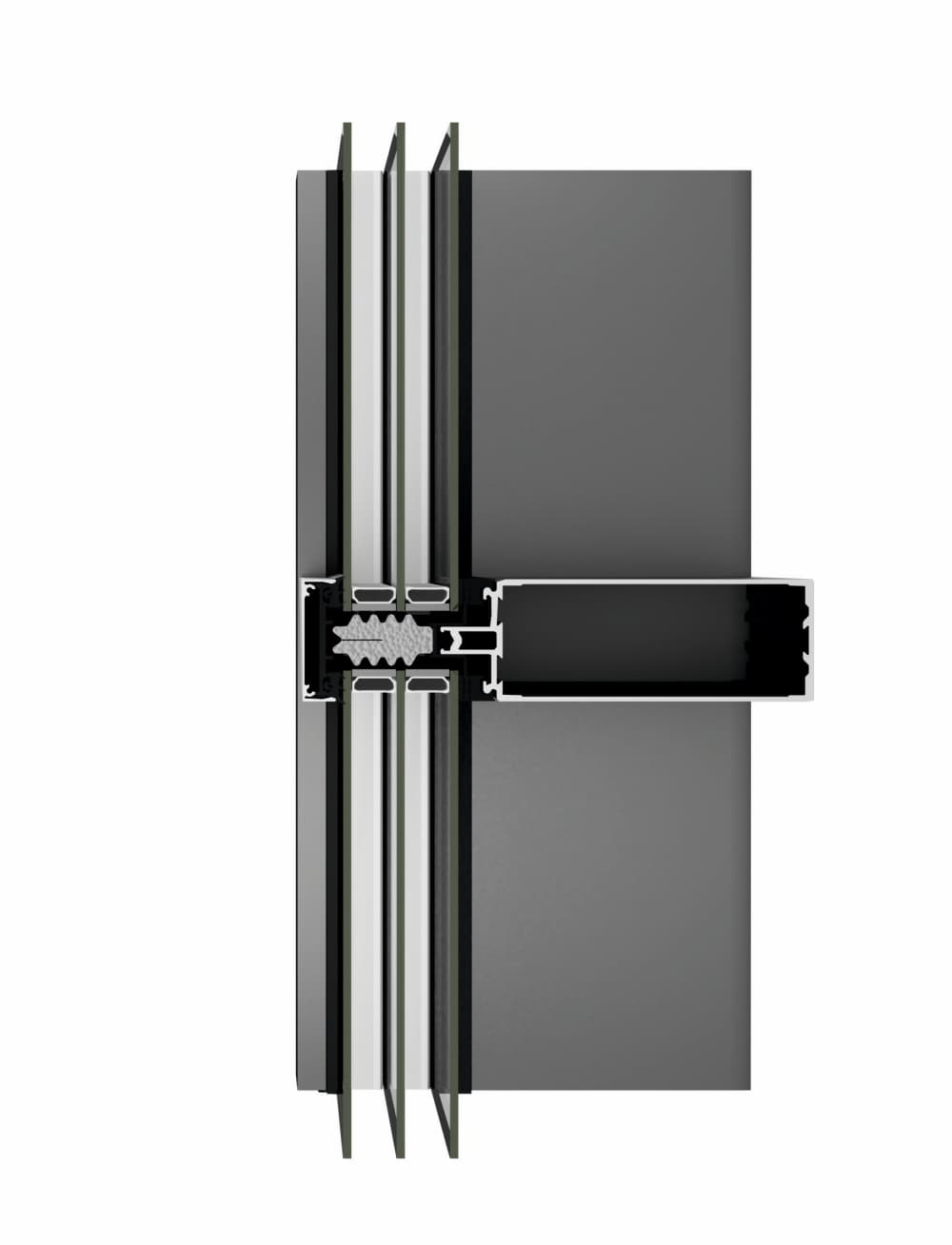

The AF 50 single-profile curtain wall system, which utilizes a column-to-column technology, provides ample possibilities for designing the building facade and is used in modern constructions. The system incorporates solutions that guarantee high insulation parameters, tightness, and material optimization.
■Thermal isolation
■Tightness
■Glazing
■Resistance
■Waterproof
Optional equipment
Uw ≥ 0,6 W/m²K
■Tightness
Class AE 1500 Pa
■Glazing
min. thickness 1 mm
max. thickness 64 mm
■Resistance
2400 Pa
■Waterproof
Class RE 2400 Pa
Optional equipment
Product features
- A wide range of corner connections, including a sealed roof transition
- A sealing gasket between the column and the crossbar on the inner side
- 3 degrees of drainage
- Internally connected column with crossbar
- Excellent material optimization due to single-profile design
- Available lintel-sill strips with fire resistance rating of EI 30 and EI 60
- Gutter mounted on one crossbar with a complete set of accessories
- Various options for external strips
- Available EI 60 version
- Glazing range up to 64 mm
