KNS

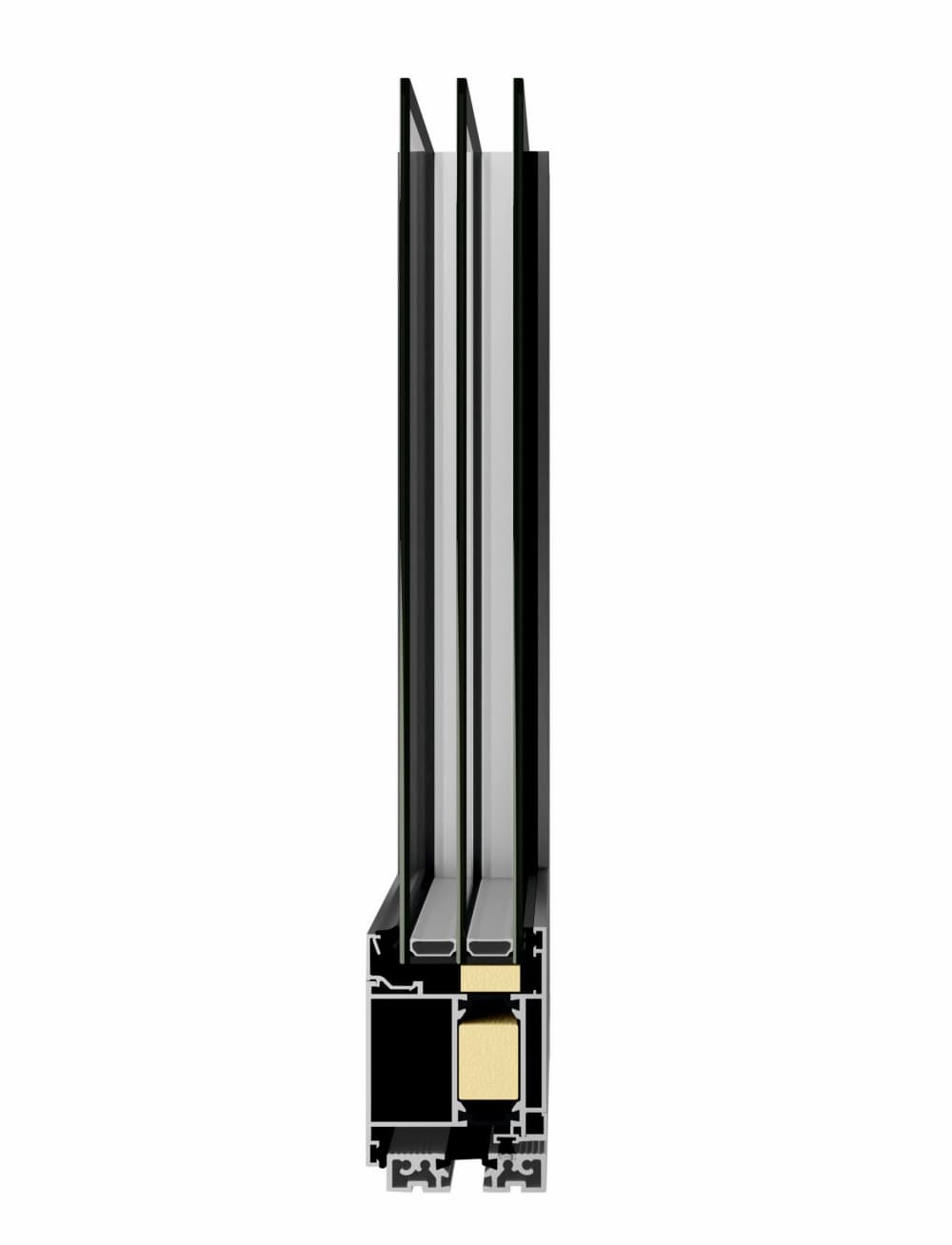

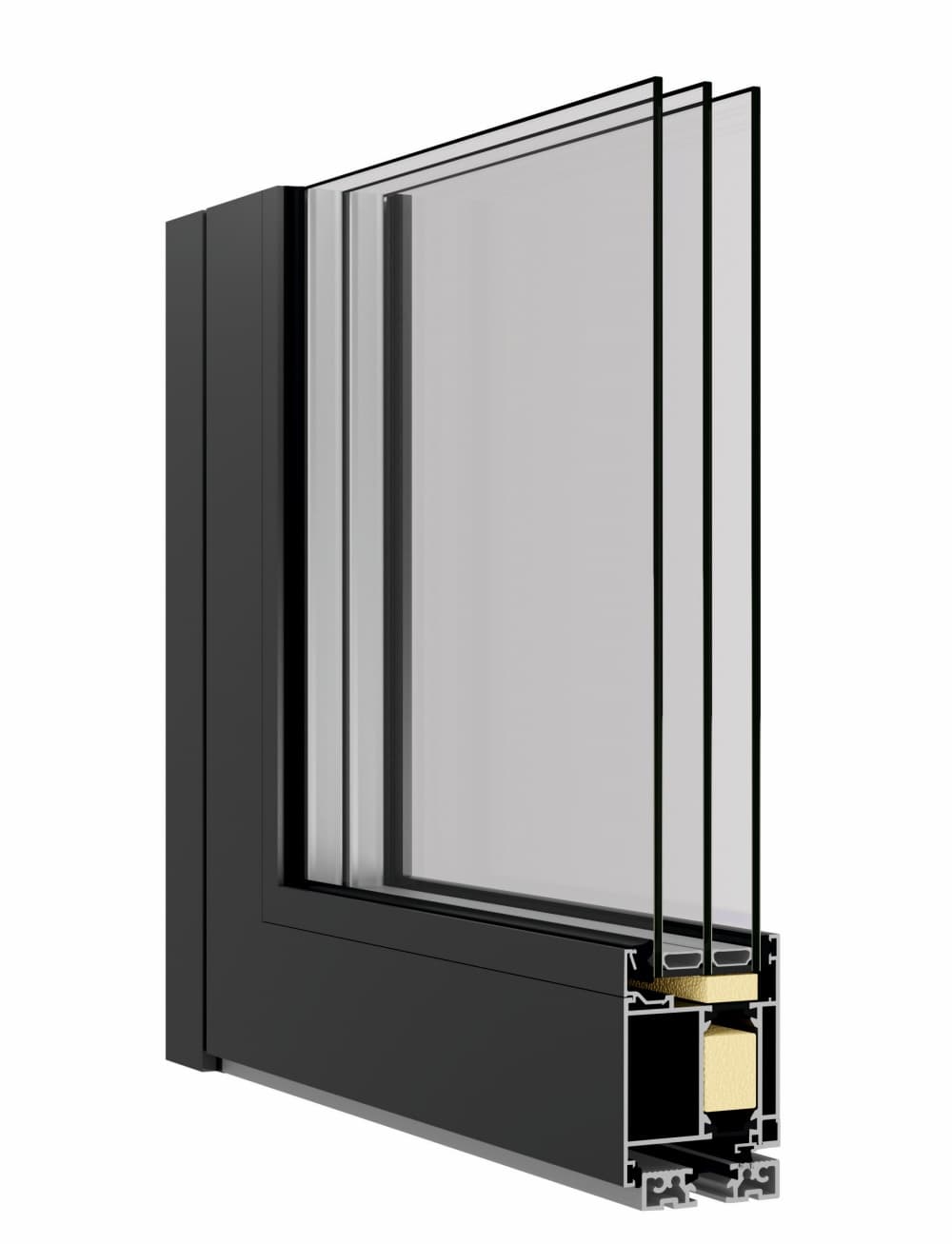

MB 70 HI

MB 70 HI

DOOR SYSTEM WITH THERMAL INSULATION
security
Security
thermo
Thermo
smoke-exhaust
Smoke exhaust windows

The MB-70 aluminum system is used to produce architectural elements of the external construction that require thermal and acoustic insulation.

Thermal isolation
Uf ≥ 1,0 W/m²K Uw ≥ 1,0 W/m²K

Tightness
Class 4, EN 1026:2001; EN 12207:2001

Security
To RC3

Glazing
min. thickness 15 mm max. thickness 54 mm

Resistance
To the class C5, EN 12211:2001; EN12210:2001

Waterproof
To the class E1200, EN 1027:2001; EN 12208:2001



Optional equipment

Product features
  • three-chamber system profiles
  • constructional depth of 70 mm for both frame and sash profiles
