MB 104 Passive AERO
MB 104
Passive AERO
SYSTEM WITH THE HIGHEST THERMAL INSULATION
Acoustic protection
Security
Thermo

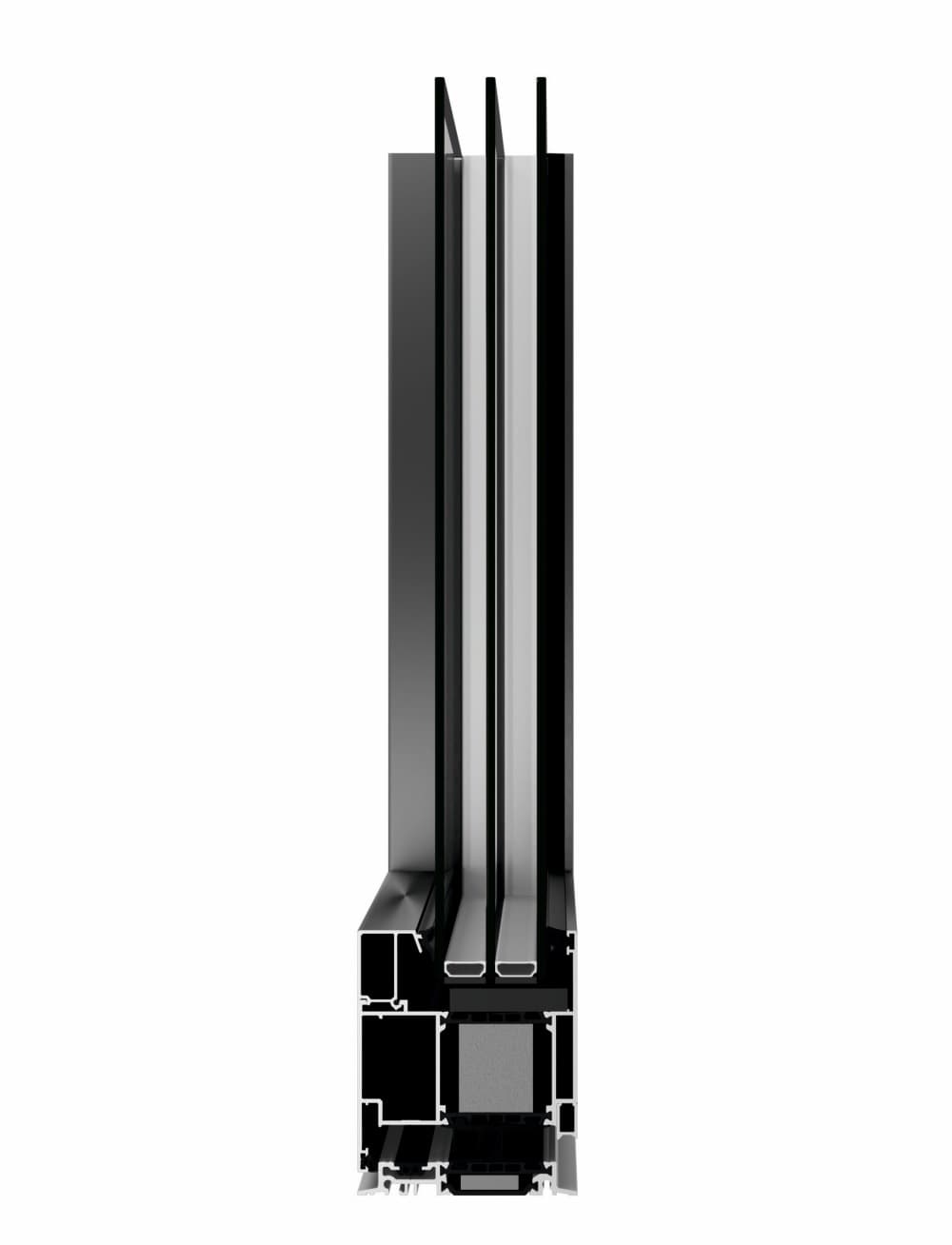

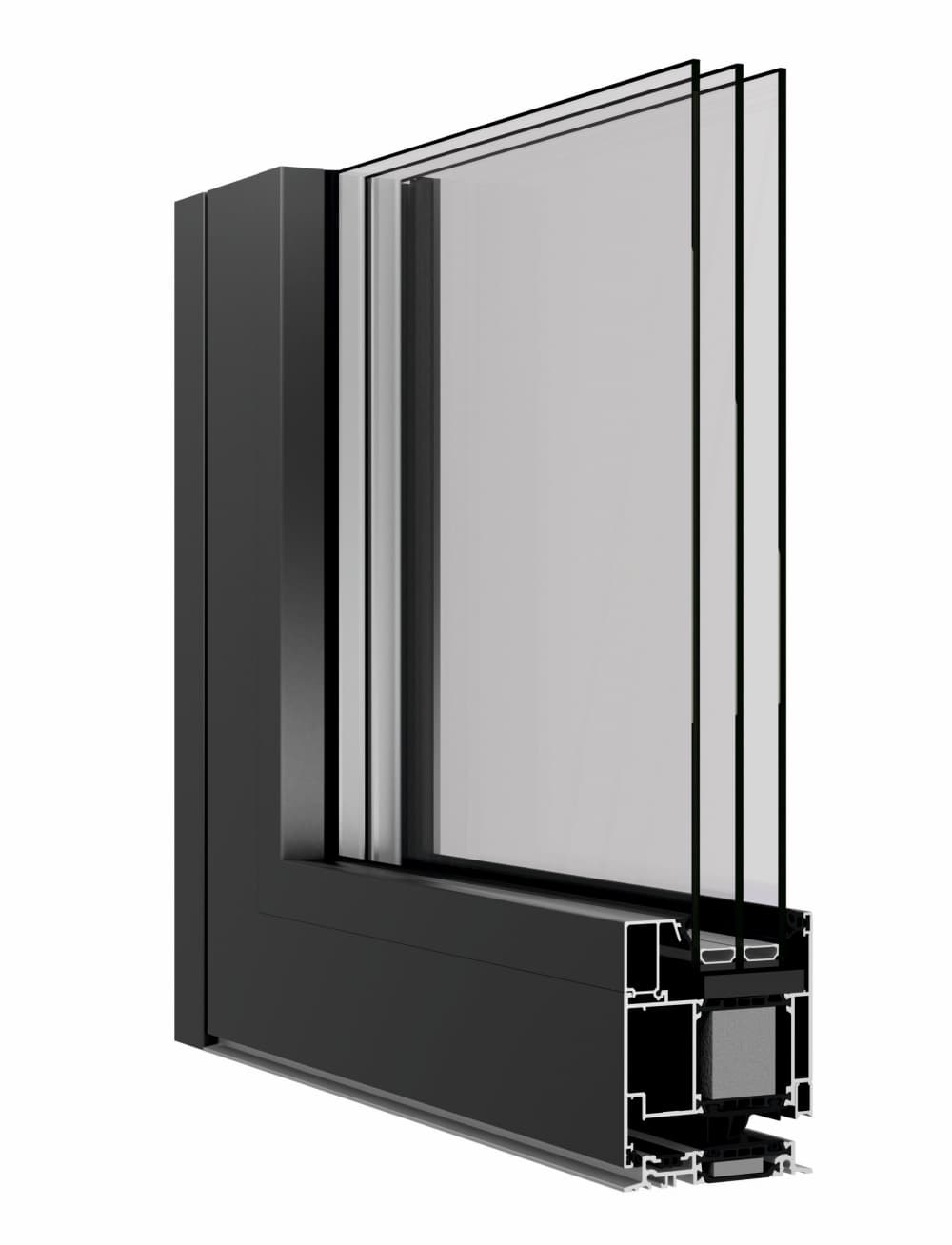

The MB-104 aluminum system has the highest thermal insulation and meets the requirements used in passive construction. MB-104 has high structural strength, very good acoustic insulation, and is watertight.
■Thermal isolation
■Tightness
■Security
■Glazing
■Resistance
■Waterproof
Optional equipment
Uw ≥ 0,53 W/m²K
■Tightness
Class 4, EN 12207:2001
■Security
To RC3
■Glazing
min. thickness 27 mm
max. thickness 72 mm
■Resistance
Class C4/B5, EN 12210:2001
■Waterproof
Class E1200 Pa, EN 12208:2001
Optional equipment
Product features
- doors available in glazed and panel versions
