KNS

Blinds SZF/S

SZF/S

BLINDS
SELF-SUPPORTING
colors
Wide range of colors
sun-protection
Sun protection
comfortable
Comfortable operation
facade-arrangement
Facade arrangement

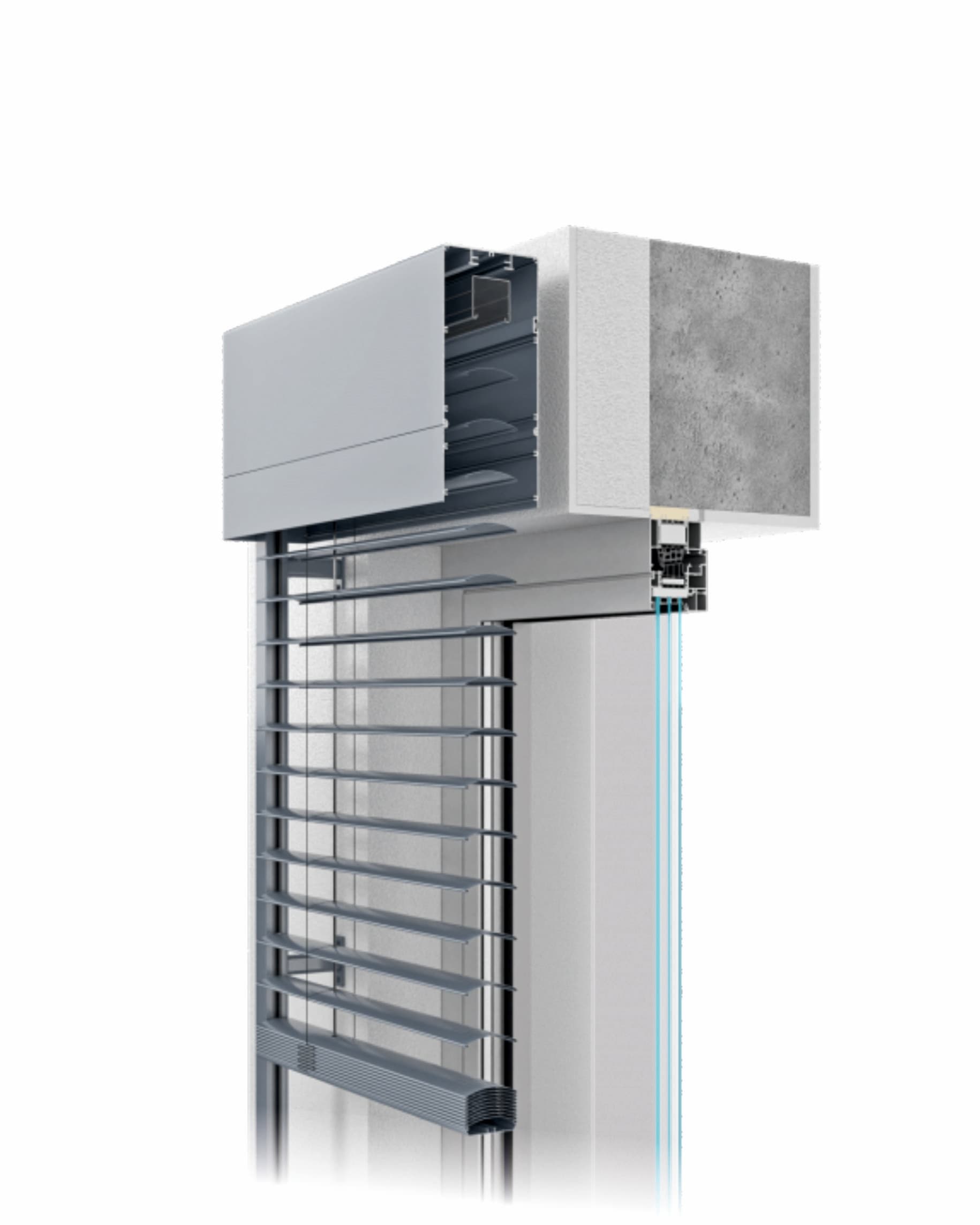

The self-supporting facade shutter has been designed primarily for facade installation in buildings with large windows. Thanks to its well thought-out construction, the guiding rails are the load-bearing element of the system, transferring the entire weight to the facade columns. As a result, there is no need for additional mounting of the protective casing, which, thanks to its aesthetic finish, serves as a decorative element. It is made of extruded aluminum and is available in two shapes: oval and square, to which the corresponding guiding rails have been adapted. The product allows for modular installation in a single cassette up to 6000 mm.

There are two types of pins (connectors) available in the offer: steel (durable and strong) and PVC (minimizing the noise that may occur during wind). The maximum dimensions are: 4500 x 4000 mm (max. area 18 m²).



Optional equipment

Product features
  • Appropriate access to light
  • Possibility of joint configuration with other systems, such as lighting, air conditioning, alarm, awnings, etc.
  • Appropriate microclimate of the room
  • Ability to control via a smartphone or tablet
  • Automatic rolling up during wind
  • Cost savings on air conditioning
  • Adjusted visual comfort, no glare effect
  • Automatic opening and closing
