aluplast Ideal NEO 76AD
Ideal NEO
76 AD
MINIMALIST DESIGN

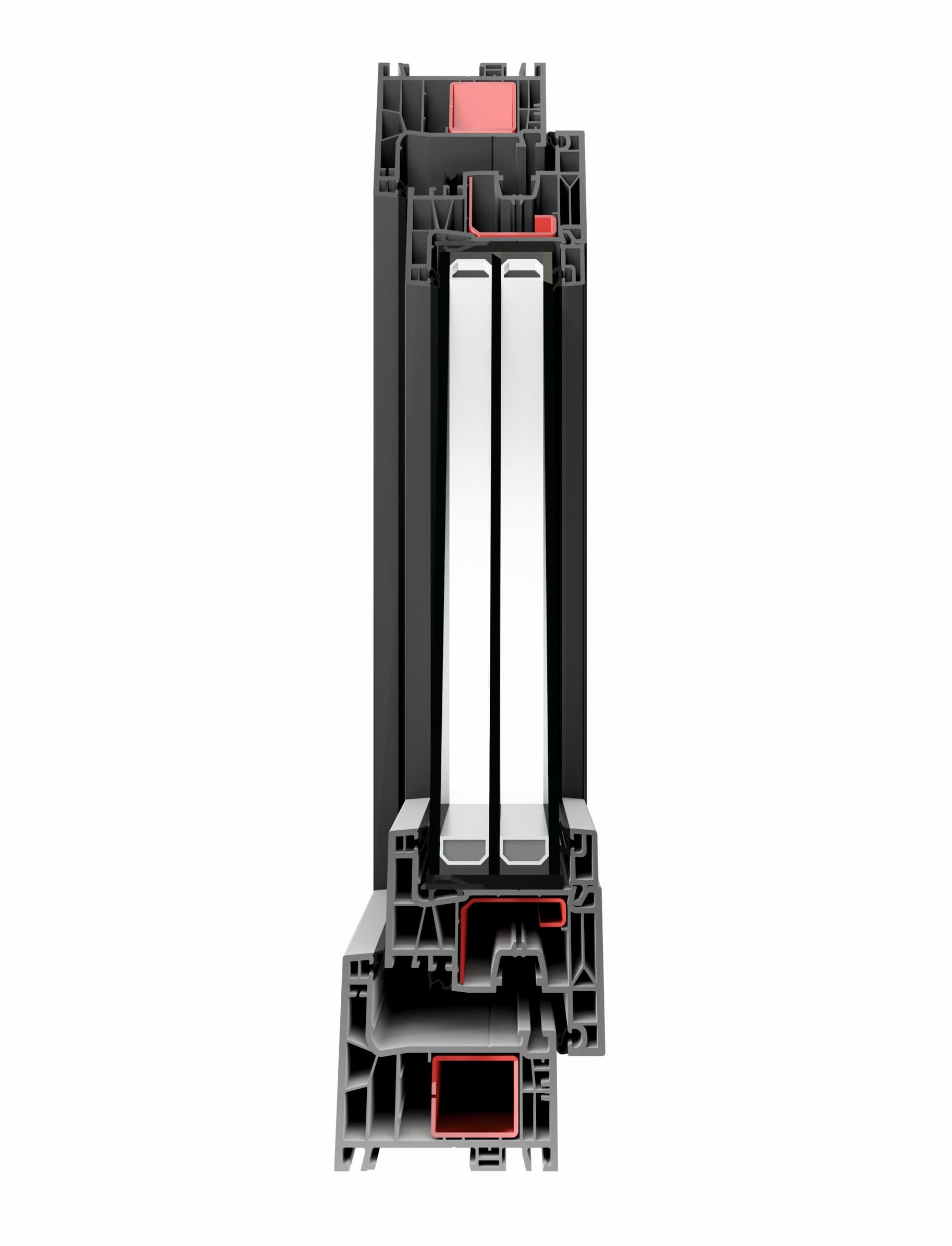

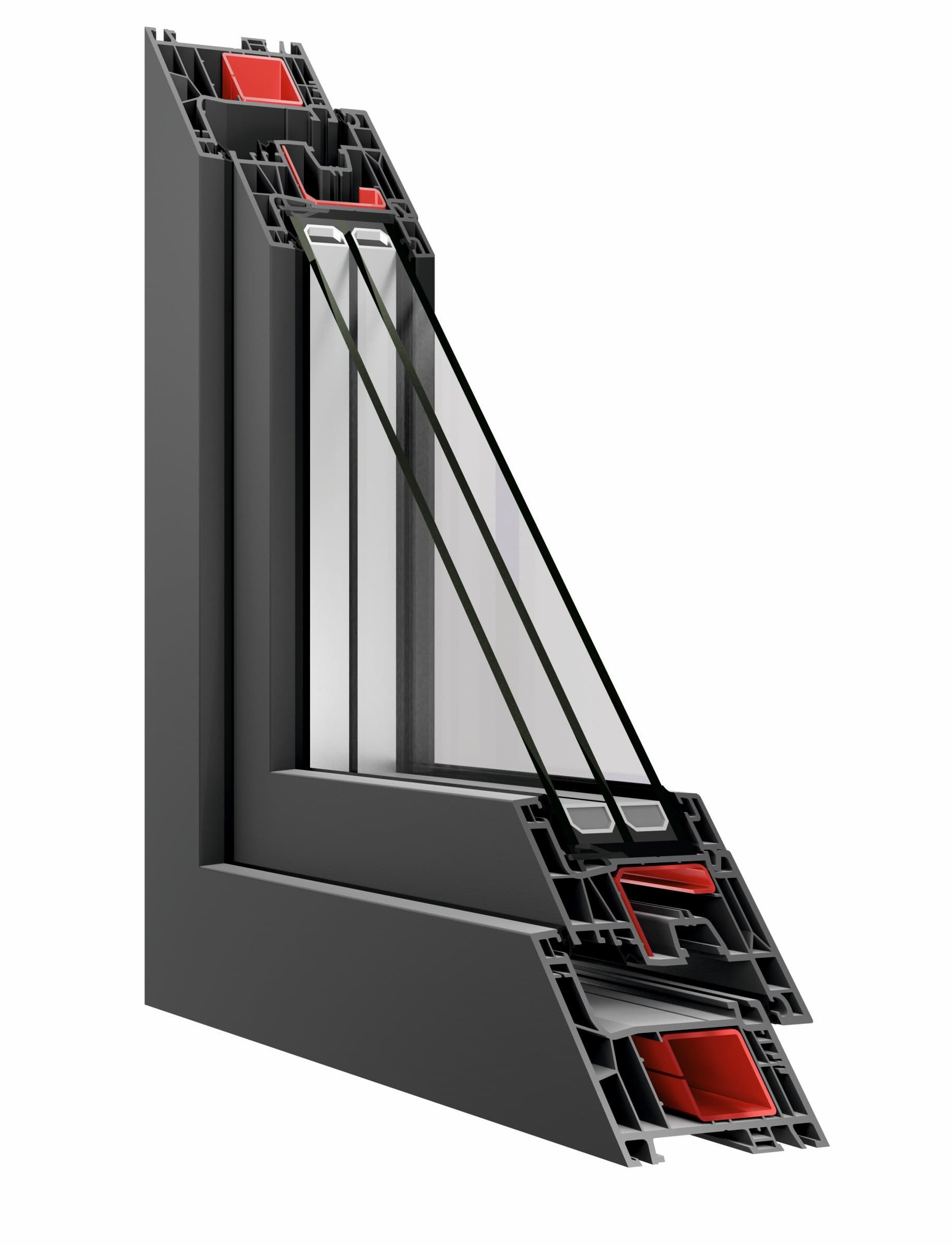

The IDEAL NEO 76AD system is a modern solution with a 76 mm installation depth, featuring six chambers in the sash and five in the frame, equipped with external seals (2 seals) and allowing the installation of glazing units up to 54 mm thick.
It stands out with its minimalist, geometric design with strong angles, while maintaining visual lightness. Thanks to the narrow sash/frame assembly (110 mm), the system enhances natural light intake into the rooms.
IDEAL NEO 76AD offers flexibility in combining different profile geometries, providing designers with a wide range of arrangement possibilities.
Optional equipment
Product features
- 6-chamber profile with an installation depth of 76 mm
- Two-seal system, available in black or gray
- Triple-glazed unit with a thermal transmittance coefficient Ug = 0.5 W/m²K
- Clean lines and minimalist design
- Reinforced frame with a closed steel profile
- Thermal insulation of the reference window Uw = 0.79 W/m²K
- Color options: Woodec and Aludec (recommended as decorative finishing surfaces)
