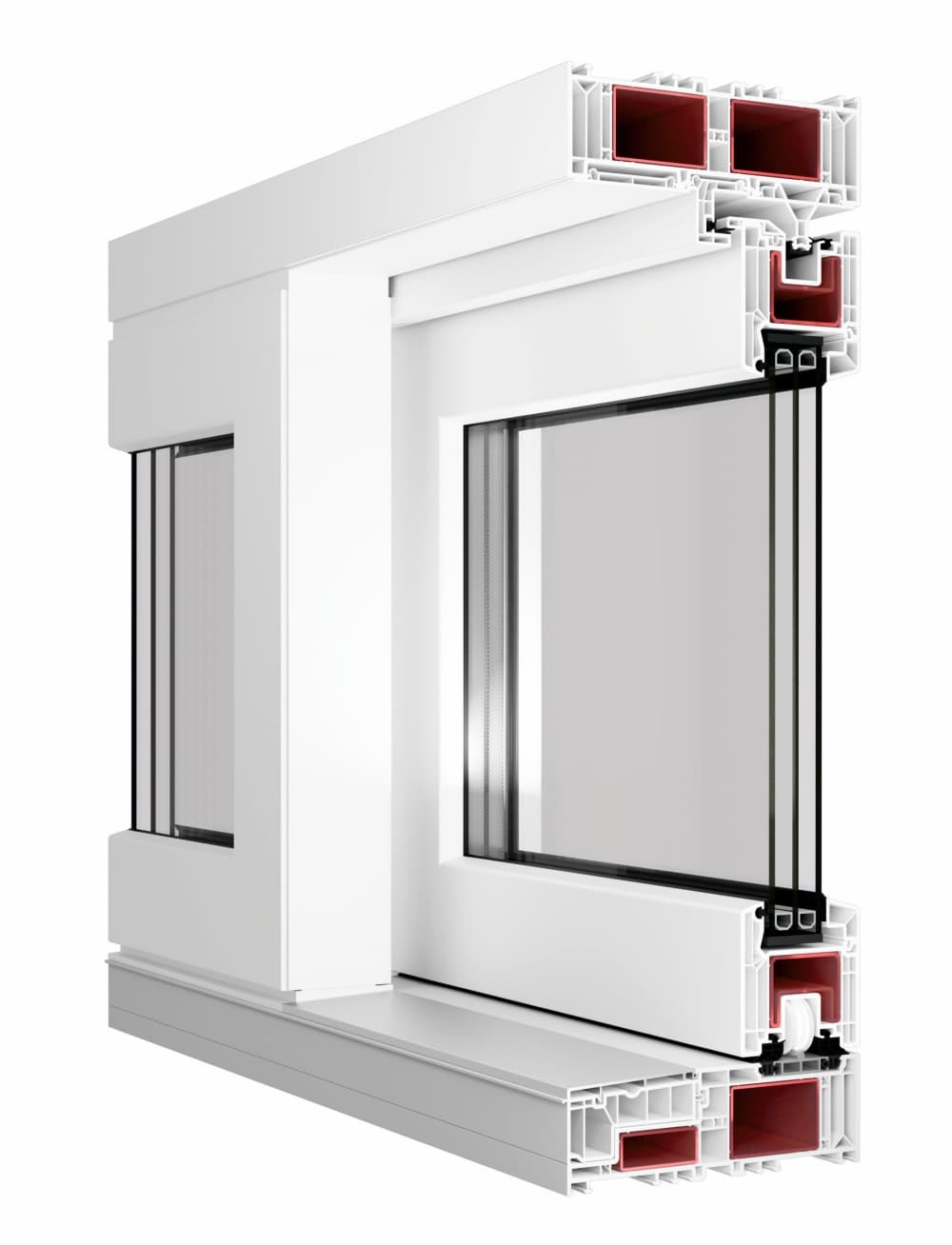

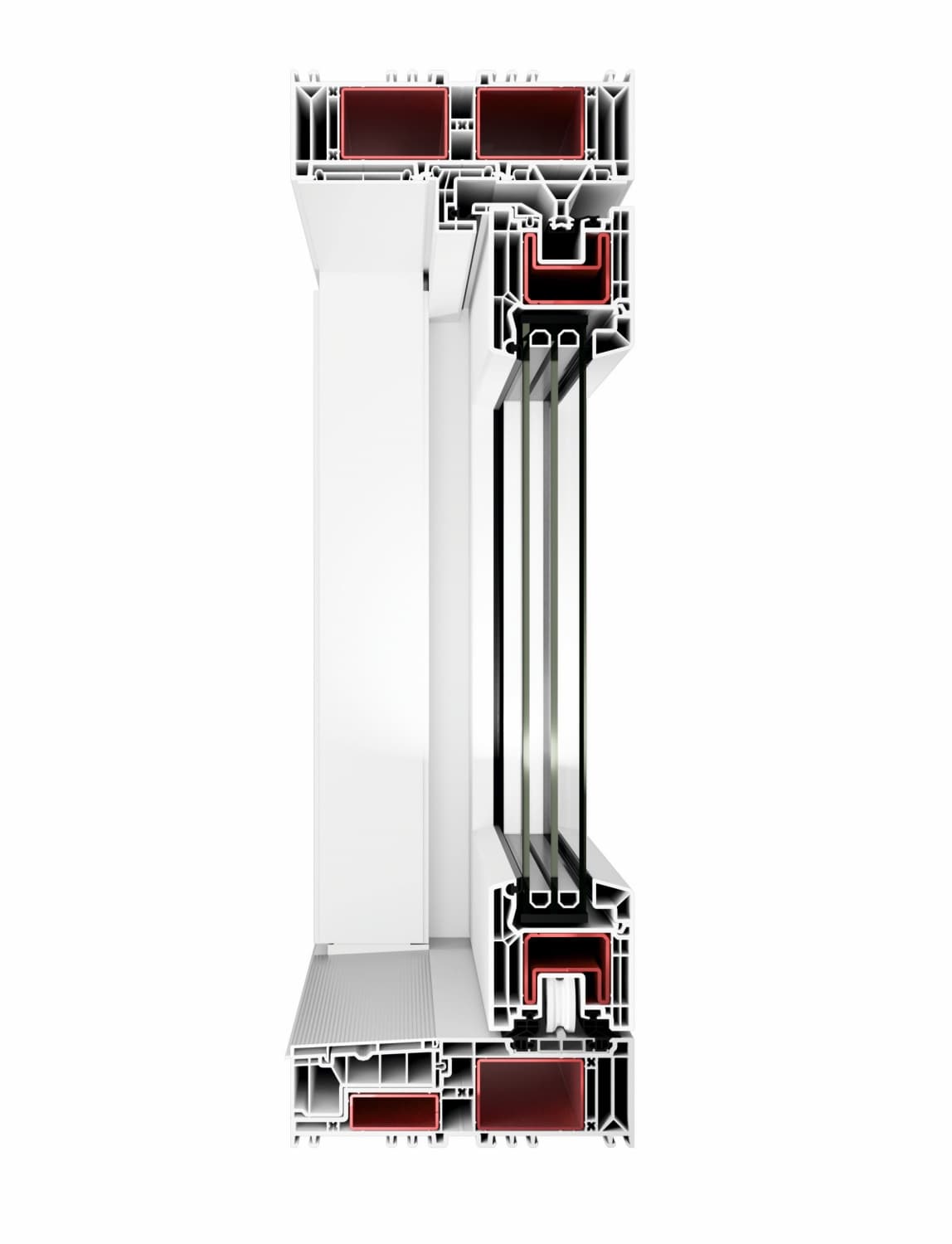

Vekamotion 82
VEKAMOTION
82
LIFTING AND SLIDING DOOR SYSTEM
VEKAMOTION 82 lift & slide door system for modern construction with excellent energy efficiency. It allows you to get a panoramic view of the surroundings of the house, focusing on the integration of the interior of the house with the garden. An excellent system for building large patio doors.
Large glazing allows constructing sliding glass panes that effectively blend the interior of the house into its surroundings.
VEKAMOTION 82 improves the waterproofing of the building. It also allows you to build in accordance with the rules of construction without barriers. This structure meets the highest requirements of architects, contractors and investors.
■Thermal isolation
■Tightness
■Acoustics
Optional equipment
Uf = 1,4 W/m²K
Uw ≥ 0,78 W/m²K
■Tightness
To class 7A
■Acoustics
Rw: to 50 dB
Optional equipment
Possibility of using RC2 fittings
Warm frame
Product features
class A profile with a leaf depth of 82 mm
profile height 152 mm
two-stage sliding sash sealing system
adapted to the installation of triple glazing packages with large glazing
maximum height of the structure 2.7 m (white in mass)
maximum weight of the glazing unit 250 kg
optimized sealing of the central part
the possibility of making large-format elements up to 6.5 x 2.7 m
