MasterPatio
MASTERPATIO
SLIDING-LIFT SYSTEM

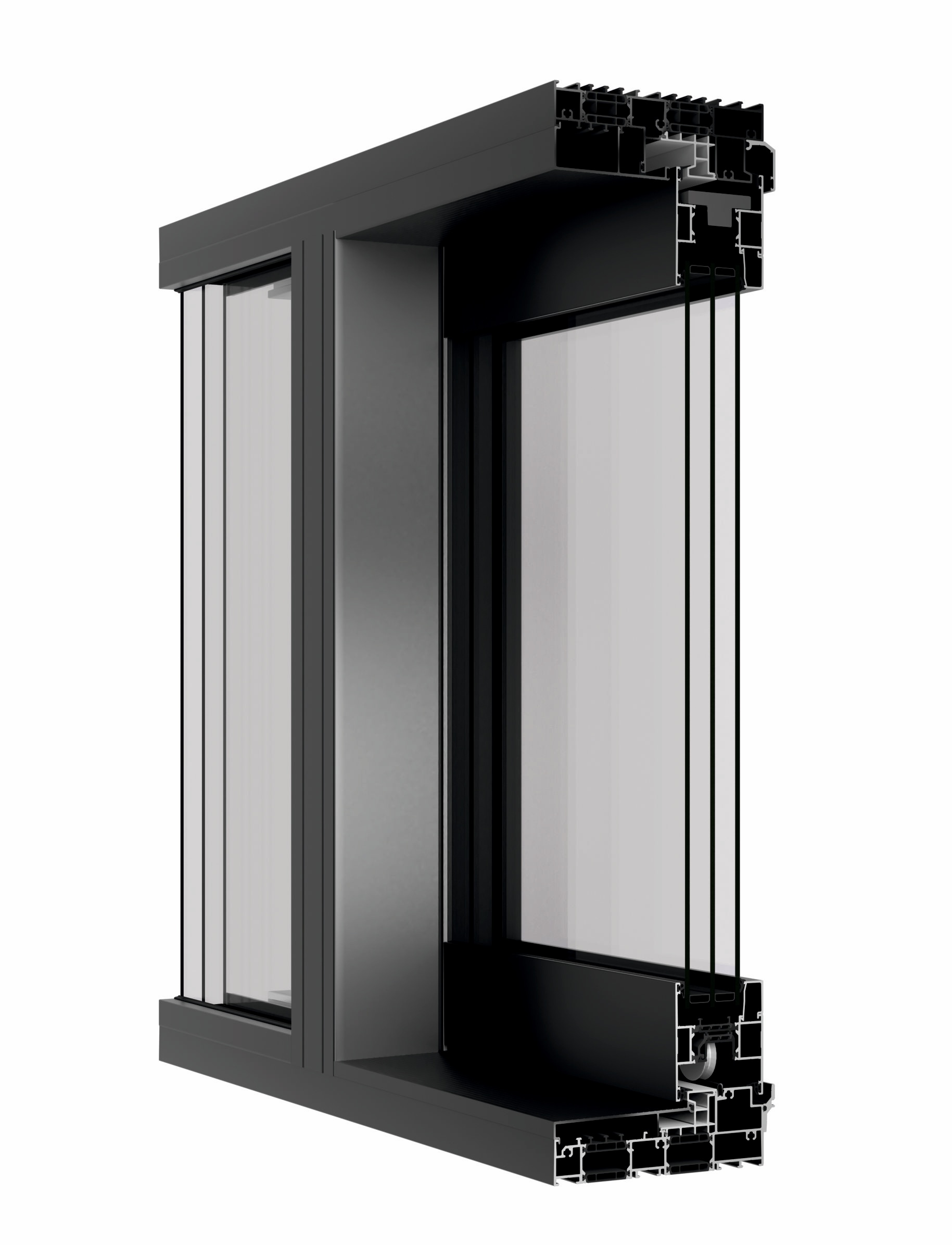

MasterPatio is a sliding-lift door system with high thermal insulation parameters for high-rise buildings. The materials used in its production come from recycling.
■Thermal isolation
■Tightness
■Acoustics
■Security
■Glazing
■Resistance
■Waterproof
Optional equipment
Uf = 1,3 W/m²K
Uw = 0,8 W/m²K
■Tightness
Class 4 (600Pa)
■Acoustics
44(-1;-4) dB
■Security
RC2, WK2
■Glazing
min. thickness16 mm
max. thickness 62 mm
■Resistance
Class C5 (2000Pa)
■Waterproof
Class 9A (600Pa)
Optional equipment
Product features
- Compatible with MasterLine 8, allowing structures to be combined into facade systems
